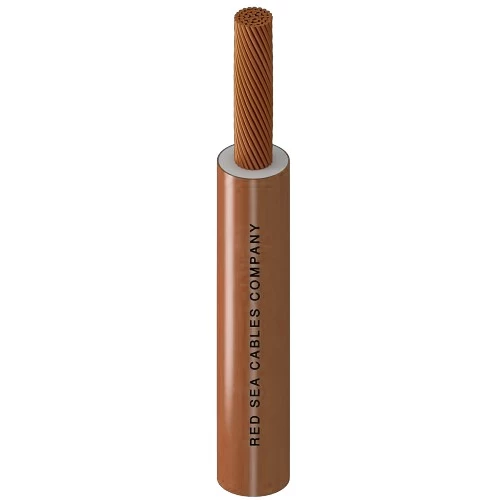

CU/ ZHLS Stranded Wire, 120 mm2, 450/750V, 1000 m, Brown Color | RESCAB
(740 Product Views)
Stranded wire (CU/ ZHLS), 120 mm2, 450/750 volts Manufactured by Red Sea Cables Company according to BS EN 50525-3-41 standard. Insulated with low smoke halogen-free compound (ZHLS), minimizes smoke and toxic fumes in case of fire.
in stock
🔗
Related Content
Product description
Stranded wire (CU/LSHF), produced by Red Sea Cables Company according to BS EN 50525-3-41 standard. Insulated with low smoke halogen-free compound (LSHF), minimizes smoke and toxic fumes in case of fire. Suitable for use in indoor fixed installations in dry locations, where particular flexibility is required. Available in various shapes and sizes in highest quality and best prices to suit different applications and needs.
- Wire Type: H07Z-K
- Conductor: Flexible Copper (Class 5)
- Insulation Material: LSHF (Low Smoke Halogen Free)
- Voltage: 450/750 volts
- Max. Temperature: +90°C
- Conductor Size (Cross-Sectional Area): 120 mm2
- Nominal Insulation Thickness: 1.6 mm
- Approx Overall Diameter: 17.7 mm
- Max DC Conductor Resistance at 20°C: 0.161 ohm/km
- Standard Length: 1000 meters
- Insulation Color: Brown
- Standard: BS EN 50525-3-41
