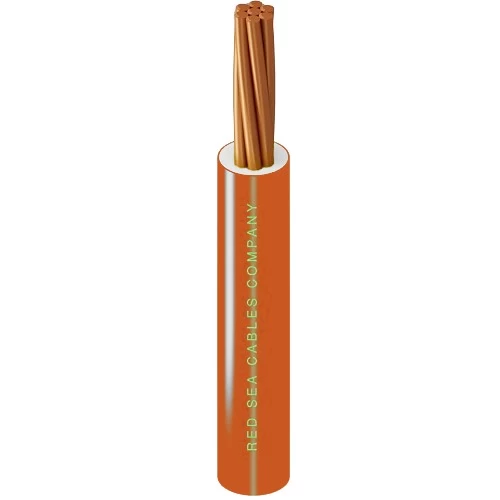

CU/ LSZH Stranded electrical copper wire, 50sq mm, 450/750V, Orange Color, Coil Length 2000 m | RESCAB

Stranded electrical copper wire(CU/LSHF), 450/750 volts produced by Red Sea Cables Company according to BS EN 50525-3-41 standard. Insulated with low smoke halogen-free compound (LSHF), minimizes smoke and toxic fumes in case of fire, therefore, it is Suitable for use in fixed and protected installations in metallic or non metallic conduits, ducts or trunks, in areas where smoke and acid gas evolution could pose a hazard to personnel or sensitive equipments in residential buildings, schools, hospitals, hotels, shopping centers, subways, etc. Available in various shapes and sizes in highest quality and best prices to suit different applications and needs.

• Wire Type: H07Z-R
• Conductor: Stranded Copper (Class 2)
• Insulation Material: LSHF (Low Smoke Halogen Free)
• Voltage: 450/750 volts
• Conductor Size (Cross-Sectional Area): 50 mm2
• Nominal Insulation Thickness:1.4  mm
• Approx Overall Diameter:10.9 mm
• Max DC Conductor Resistance at 20°C: 0.387 ohm/km
• Insulation Color: Orange
• Standard Length: 2000 m
• Standard: BS EN 50525-3-41
