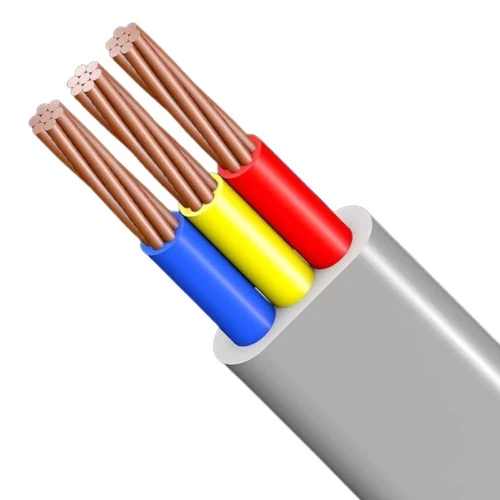

Flat Multicore Cable Stranded Copper Three Cores  Alfanar Size 16 mm² Diameter 9.3 × 22.7  mm 300/500 V Length 300 F Gray Color

Flat Multicore Cable Stranded Copper Three Cores Alfanar Size 16 mm² Diameter 9.3 × 22.7 mm 300/500 V Length 300 F Gray Color

(1367 Product Views)

YouMats

Available now,Flat multicore cable standerd copper three cores,size 16 mm2,diameter 9.3 × 22.7 mm,voltage 300/500 Volt,Gray color, Al-Fanar brand,designed for electrical installations and for all general uses in commercial and residential buildings,as it is characterized by high temperature tolerance,oil resistance and Harmful grease,in addition to wrapping it with an insulating layer of polyvinyl chloride,which prevents the spread of flames,Shipping is available.

in stock
 Call Now
💳 general.accepted_payments
general.mada
general.master_card
general.visa
general.tamara

Product description

Flat multicore cable standerd copper three cores, for electrical connections and extensions, Brand Al Fanar, For indoor installation in dry locations where greater flexibility is needed, Also ideal for electrical panel connection or other electrical apparatus, Cables can be laid in groups around steel sheets, Building wires, Designed and tested in accordance with the latest UL, BS or IEC standards. Manufactured from electrolytic grade 99.97% pure copper. Gasoline and oil resistant.

  • Insulation : two layers of PVC 70° insulation and PVC 70° Jacketed
  • Voltage : 300/500 Volt
  • Size : 16 mm²
  • Length : 300 feet
  • Overall Diameter : 9.3 × 22.7 mm
  • Sheath color : Gray
  • Core colors : Red, Yellow and Blue
