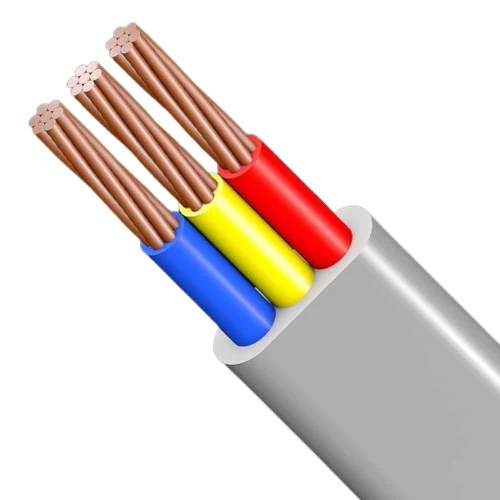

Flat Multicore Cable Stranded Copper Three Cores Alfanar Size 16 mm² Diameter 9.3 × 22.7 mm 300/500 V Length 120 F Gray Color
(1390 Product Views)
Flat multicore cable standerd copper three cores,size16 mm2,diameter 9.3 × 22.7 mm,voltage 300/500 volt,Length 120 feet, sheath color Gray, Brand Al-Fanar, has two layers of PVC 70°C insulation and PVC 70°C Jacketed, is designed for electrical installations and for all general uses in commercial and residential buildings, as it is characterized by its ability to withstand high temperatures and resist harmful oils and greases, in addition to being covered with an insulating layer of flame retardant polyvinyl chloride.
Product description
Flat multicore cable standerd copper three cores, Brand Al Fanar, For indoor installation in dry locations where greaterflexibility is needed, Also ideal for electrical panel connection or other electrical apparatus, Cables can be laid in groups around steelsheets.Designed and tested in accordance with the latest UL, BS or IEC standards. Manufactured from electrolytic grade 99.97% pure copper. Gasoline and oil resistant.
- Insulation : two layers of PVC 70° insulation and PVC 70° Jacketed
- Voltage : 300/500 Volt
- Size : 16 mm²
- Length : 120 feet
- Overall Diameter : 9.3 × 22.7 mm
- Sheath color : Gray
- Core colors : Red, Yellow and Blue
