Stranded Bare Copper Wire, 4 mm2 Size, 2000 meter | RESCAB
(804 Product Views)
-size_height_45.webp "YouMats"){kind=logo}

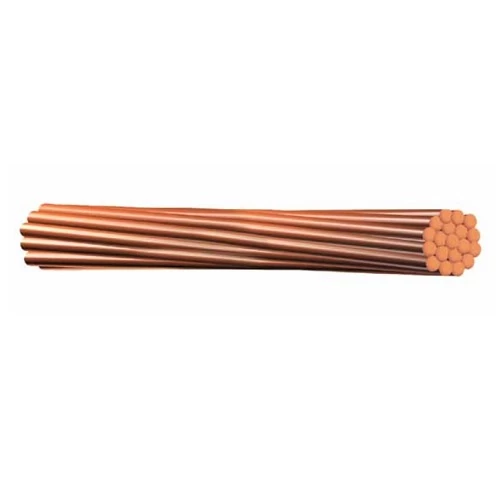

Stranded bare copper wire (SDBC), 4 mm2 size, produced by Red Sea Cables Company, suitable for uninsulated hook up, jumpers and grounding conductors in electrical construction, where high conductivity and flexibility are required.
Product description
Stranded bare copper wire (SDBC), produced by Red Sea Cables Company according to IEC 60228 standard. It has the highest electrical conductivity compared to other common commercial metals, excellent corrosion resistance, and is not easily broken due to nicks or cuts during when terminating. suitable for uninsulated hook up, jumpers and grounding conductors in electrical construction, where high conductivity and flexibility are required. Available in various shapes and sizes in highest quality and best prices to suit different applications and needs.
- Conductor: Stranded Copper
- Conductor Size (Cross-Sectional Area): 4 mm2
- No x Diameter of Wires:7 x 0.66 mm
- Approx Overall Diameter: 2.5 mm
- Max DC Conductor Resistance at 20°C: 4.61 ohm/km
- weight : 34 Kg/Km
- Standard Length: 2000 meter
- Standard: IEC 60228
