Stranded Bare Copper Wire, 185 mm2 Size, 1000 meter | RESCAB
(1214 Product Views)

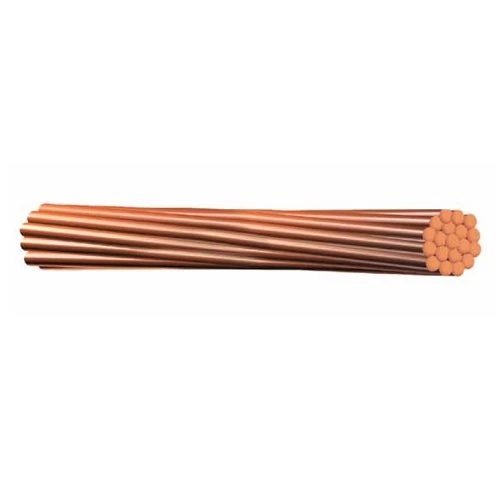

Stranded bare copper wire (SDBC), 185 sq mm2 size, produced by Red Sea Cables Company, excellent corrosion resistance, and is not easily broken due to nicks or cuts during when terminating.
Product description
Stranded bare copper wire (SDBC), produced by Red Sea Cables Company according to IEC 60228 standard. It has the highest electrical conductivity compared to other common commercial metals, excellent corrosion resistance, and is not easily broken due to nicks or cuts during when terminating. suitable for uninsulated hook up, jumpers and grounding conductors in electrical construction, where high conductivity and flexibility are required. Available in various shapes and sizes in highest quality and best prices to suit different applications and needs.
- Conductor: Stranded Copper
- Conductor Size (Cross-Sectional Area): 185 mm2
- No x Diameter of Wires: 37 x 2.48 mm
- Approx Overall Diameter: 17.4 mm
- Max DC Conductor Resistance at 20°C: 0.099 ohm/km
- weight : 1593 Km/Kg
- Standard Length: 1000 meter
- Standard: IEC 60228
