Stranded Bare Copper Grounding Conductor, 16 mm2 Size, 2000 meter | Alfanar
(1026 Product Views)
-size_height_45.webp "YouMats"){kind=logo}

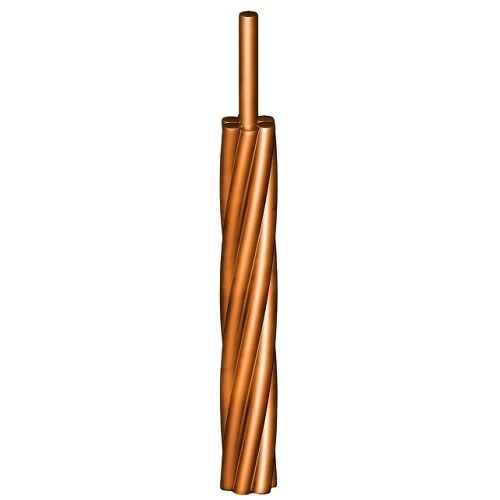

Stranded bare copper wire (SDBC), 16 mm2 size, produced by Alfanar Company, suitable for uninsulated hook up, jumpers and grounding conductors in electrical construction, where high conductivity and flexibility are required.
Product description
Stranded bare copper conductor (SDBC), produced by Alfanar Company according to IEC 60228 / BS EN 60228 standard. It has the highest electrical conductivity compared to other common commercial metals, excellent corrosion resistance, and is not easily broken due to nicks or cuts during when terminating. suitable for uninsulated hook up, jumpers and grounding conductors in electrical construction, where high conductivity and flexibility are required. Available in various shapes and sizes in highest quality and best prices to suit different applications and needs.
- Conductor: Stranded Soft-Drawn Copper Conductors
- Conductor Size (Cross-Sectional Area): 16 mm2
- Number of Wires x Wires Diameter: 7 x 1.68 mm
- Approx Overall Diameter: 5.04 mm
- Approx. Overall Weight: 138.0 kg / km
- Max DC Conductor Resistance at 20°C: 1.15000 ohm/km
- Standard Length: 2000 meter
- Standard: IEC 60228 / BS EN 60228
