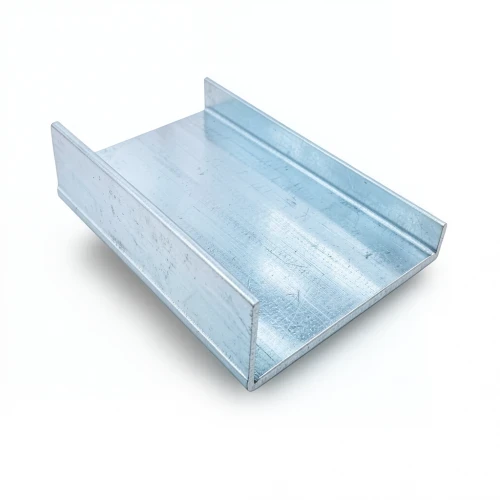

CTVHD Very Heavy Duty Cable Tray 2.00mm
(1 Product Views)
Product description
Engineered for demanding environments, the CTVHD Very Heavy Duty Cable Tray features a robust 2.00mm thickness to support substantial cable weights and resist deformation. Available in both aluminum and steel, this tray system offers superior strength-to-weight ratios and corrosion resistance, making it ideal for harsh industrial settings, power plants, and large-scale commercial facilities.
The design options include swaged rounded tubular and welded C-channel profiles, ensuring flexibility in installation and aesthetic integration. With standard lengths of 2440 mm or 3000 mm and a wide range of widths from 50 to 1000 mm, the CTVHD series accommodates diverse routing needs. Side heights of 50, 75, and 100 mm allow for efficient vertical space utilization while maintaining secure cable containment.
- 2.00mm thickness for maximum structural integrity
- Available in Aluminum or Steel for specific environmental needs
- Swaged rounded tubular or welded C-channel construction
- Widths ranging from 50 mm to 1000 mm
- Standard lengths of 2440 mm or 3000 mm
- Side heights of 50, 75, and 100 mm for versatile installations
