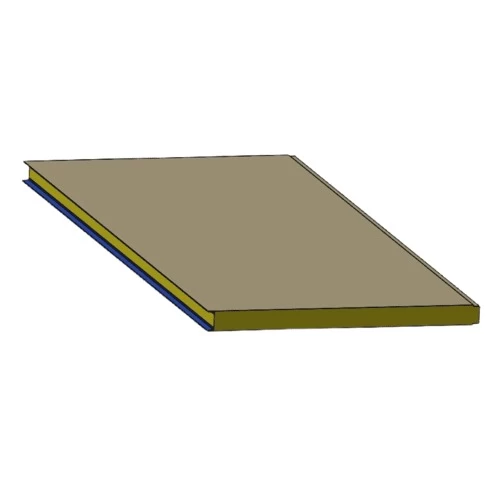

Sandwich Panel Insulation Pre-painted galvanized iron plain wall, size 100 mm
(1062 Product Views)
Sandwich Panel Insulation Pre-painted galvanized iron plain wall, size 100 mm, is considered a lightweight building material, which facilitates the process of transportation and installation.
Product description
Sandwich panel, made of high quality materials, characterized by durability, strength and ability to withstand different environmental conditions, and has flexibility in design and resistance to corrosion, heat and fire, which extends its life and makes it suitable for various applications, it is suitable for use in a variety of applications such as temperature control facilities, aircraft hangars, caravans, factories, warehouses, rest houses and gas stations, canopies and so on, available in a variety of types and sizes to suit all different needs.
- Size: 100 mm
- Heat transfer coefficient: 0.23 W/m2-K
- Thermal resistance: 4.45 m2-K/W
- Type: Wall
- Lock design: Z- lock plate
- External cladding design: Plain
- Internal cladding design: Plain
- Material: Pre-painted galvanized iron(PPG)
- Color: Cloud white and other colors available upon request
- Insulation core: Polyisocyanurate (PIR), meets DIN 4102 B2 fire classification
- Molded density: 40 to 42 kg/m3, ASTM D 1622
- Core density: 36 to 38 kg/m3, ASTM D 1622
- Compressive strength: >100, ASTM 1621
- K value: 0.020-0.0022 W/mK, ASTM C 518
- Dimensional stability: <1%, ASTM D2126
- Closed cell content: >90%, ASTM D 2856
- Flammability: DIN 4102 – 1, Class B2
