Iron Galvanized Sandwich Panel Wall, Size 75 mm, Semi Corrugated Design

Iron galvanized sandwich panel wall, semi corrugated design made of high quality materials, characterized by durability, strength and ability to withstand different environmental conditions, and has flexibility in design and resistance to corrosion, heat and fire, which extends its life and makes it suitable for various applications, it is suitable for use in a variety of applications such as temperature control facilities, aircraft hangars, caravans, factories, warehouses, rest houses and gas stations, canopies and so on, available in a variety of types and sizes to suit all different needs.

• Size: 75 mm
• Heat transfer coefficient: 0.32 W/m2-K
• Thermal resistance: 2.273 m2-K/W
• Type: Wall

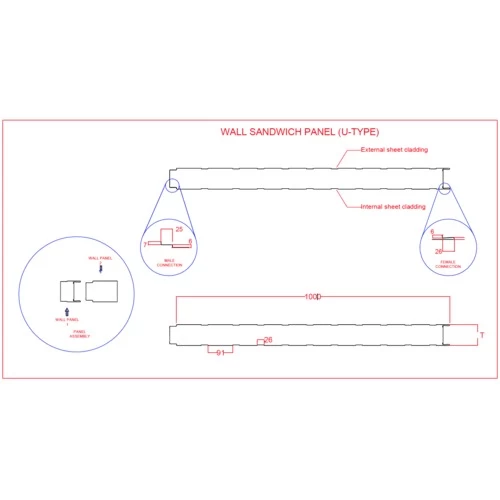

• Lock design: U- lock plate
• External cladding design:  Semi Corrugated
• Internal cladding design: Plain
• Material: Iron Galvanized
• Color: Cloud white and other colors available upon request
• Insulation core: Polyisocyanurate (PIR), meets DIN 4102 B2 fire classification
• Molded density: 40 to 42 kg/m3, ASTM D 1622
• Core density: 36 to 38 kg/m3, ASTM D 1622
• Compressive strength: >100, ASTM 1621
• K value: 0.020-0.0022 W/mK, ASTM C 518
• Dimensional stability: <1%, ASTM D2126
• Closed cell content: >90%, ASTM D 2856
• Flammability: DIN 4102 – 1, Class B2
