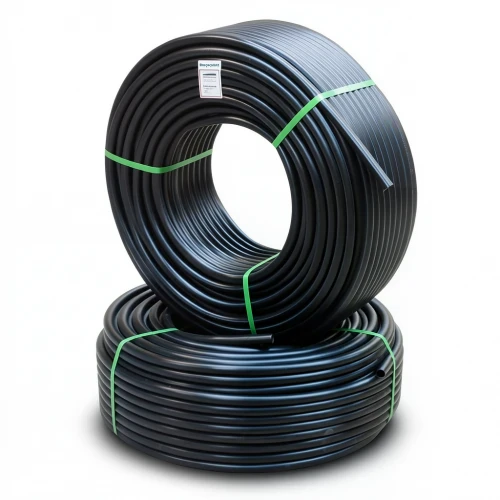

Neproplast HDPE Pipes PE 100 Pressure 20 Bar Outside Diameter 90 mm Thickness 10.1 mm Color Black

Neproplast HDPE Pipes PE 100 Pressure 20 Bar Outside Diameter 90 mm Thickness 10.1 mm Color Black

(8 Product Views)

Neproplast HDPE pipes PE 100, rated for 20 bar pressure, with a 90 mm outside diameter and 10.1 mm wall thickness, are ideal for potable and agricultural water systems across the UAE.

in stock
 Call Now

Product description

Neproplast HDPE pipes are engineered for demanding water conveyance applications, offering exceptional durability and performance in the UAE's challenging climate. Manufactured from high-density polyethylene (PE 100), these pipes provide a reliable, long-lasting solution for potable water distribution and agricultural irrigation systems.

Key Features

  • High-pressure rating: 20 bar, suitable for high-demand applications
  • Outside diameter: 90 mm; wall thickness: 10.1 mm
  • Lightweight yet robust, simplifying handling and installation
  • Resistant to bacteria, insects, and corrosion
  • Withstands high pressure, heat, and UV radiation
  • No painting required, reducing maintenance
  • Flexible and easy to form to meet custom requirements
  • Can be safely joined using electric fusion welding

Applications in the UAE

These pipes are widely used in municipal water supply networks, residential and commercial plumbing, agricultural irrigation projects, and industrial water transfer systems across Dubai, Abu Dhabi, and other emirates. Their resistance to harsh sunlight and high temperatures makes them a preferred choice for outdoor installations.

Technical Specifications

  • Material: PE 100 (high-density polyethylene)
  • Pressure rating: 20 bar
  • Outside diameter: 90 mm
  • Thickness: 10.1 mm
  • Length: Available in rolls of 100 meters
  • Weight: 2.540 kg per meter
  • Color: Black (other colors available on request)
  • Standard Dimension Ratio (SDR): 9
  • Sigma (ฯƒ): 8
  • Minimum Required Strength (MRS): 10 MPa
  • Series (S): 4
