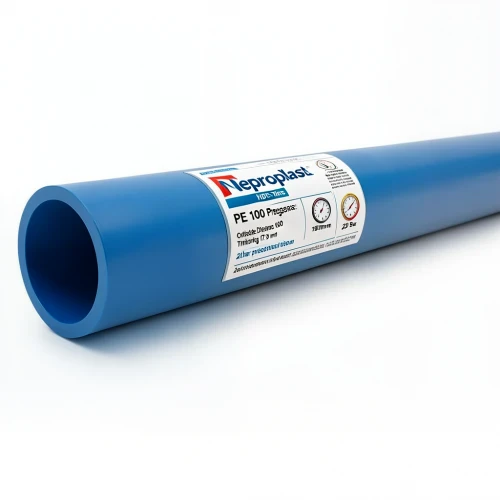

Neproplast HDPE Pipes PE 100 Pressure 20 Bar Outside Diameter 160 mm Thickness 17.9 mm Color Blue

Neproplast HDPE pipes, manufactured from high-density polyethylene (PE100), are engineered for reliable performance in demanding water conveyance applications. With a pressure rating of 20 bar and an outside diameter of 160 mm, these pipes are well-suited for potable water distribution and agricultural irrigation systems commonly deployed across the UAE’s urban and rural infrastructure.

These pipes combine exceptional strength with lightweight construction, making handling and installation straightforward on project sites in Dubai, Abu Dhabi, and beyond. Their resistance to bacteria, insects, heat, and UV radiation ensures long-term durability in the region’s harsh climate. The smooth internal surface minimizes friction losses, enhancing flow efficiency. Additionally, the pipes require no painting and can be easily customized to meet specific project requirements.

Secure and leak-proof connections are achieved through electric welding, providing a robust joint integrity that meets rigorous standards. Each pipe comes in standard 12-meter lengths, with other lengths available upon request. The blue color is standard, while other colors can be supplied as needed.

Key Specifications

• Material: High-density polyethylene (PE100)
• Pressure rating: 20 bar
• Outside diameter: 160 mm
• Wall thickness: 17.9 mm
• Standard dimension ratio (SDR): 9
• Minimum required strength (MRS): 10 MPa
• Series (S): 4
• Weight: 7.960 kg per meter
• Length: 12 meters straight (custom lengths available)
• Color: Blue (other colors on request)
