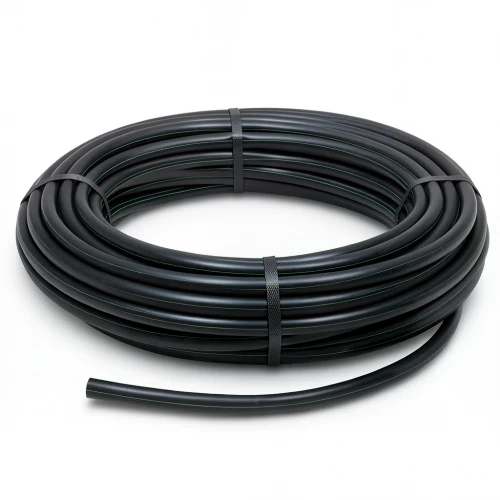

HDPE Polyethylene Plastic Coil Pipe Working Pressure 15.7 Bar [PE 63] Outer Diameter 32 mm SDR 6 Color Black | Almona Company

This HDPE coil pipe, manufactured by Almona Company, is a reliable solution for irrigation systems across the United Arab Emirates. Made from high-density polyethylene, it offers exceptional durability and performance, ensuring efficient water conveyance even under demanding conditions.

Designed to withstand high water pressure, this pipe is ideal for networks that experience significant stress. Its robust construction guarantees a maintenance-free service life of up to 50 years, making it a cost-effective choice for long-term projects. Additionally, it provides superior resistance to corrosion and external environmental factors, which is crucial in the UAE's challenging climate.

Key Specifications

• Outer Diameter: 32 mm
• Wall Thickness: 5.4 mm
• Weight: 0.454 kg/m
• Standard Dimension Ratio (SDR): 6
• Working Pressure: 15.7 bar
• Pipe Series (S): 2.5
• Material Grade: PE 63
• Color: Black
• Minimum Required Strength (MRS): 6.3 MPa
• Design Stress (σs): 3.94 MPa
• Design Safety Factor: C=1.6

Available Lengths

Supplied in coils of 100, 200, 300 meters, and up to 1500 meters for sizes from 16 mm to 32 mm. For sizes from 40 mm to 160 mm, available in 100-meter coils.

Manufactured in accordance with DIN 8074/8075, this pipe meets international quality standards, ensuring reliable performance in various applications, including agricultural irrigation, landscaping, and water supply systems in the UAE.
