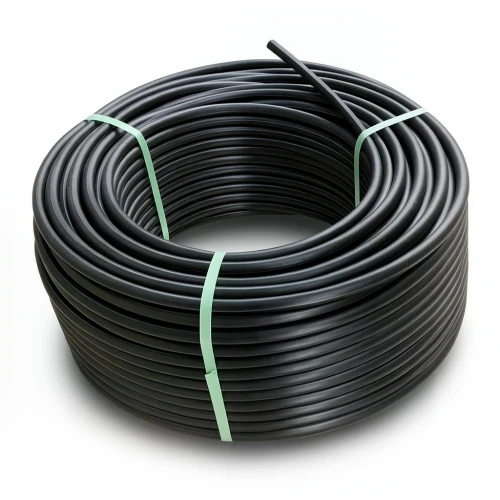

HDPE Polyethylene Coil Pipe PN 10 Bar [PE 100] Outside Diameter 90 mm SDR 17 Color Black | Almona Company
(5 Product Views)
High-density polyethylene coil pipe for water networks, PN 10 bar, SDR 17, 90 mm OD, black, from Almona Company.
in stock
Product description
This HDPE coil pipe from Almona Company is engineered for reliable water transportation in the UAE's demanding environment. Made from high-density polyethylene (PE100), it offers exceptional strength, durability, and resistance to corrosion and chemicals, ensuring a long service life with minimal maintenance.
Ideal for potable water supply, irrigation, and industrial applications across Dubai, Abu Dhabi, and the Northern Emirates, this pipe withstands high temperatures and pressure, making it suitable for both underground and above-ground installations. Its flexibility allows for easy handling and quick installation, reducing project timelines and labor costs.
Key Features
- Outside diameter: 90 mm
- Wall thickness: 5.4 mm
- Standard dimension ratio: SDR 17
- Pressure rating: PN 10 bar
- Pipe series (S): 8
- Material grade: PE100
- Color: Black
- Minimum required strength (MRS): 10 MPa
- Design stress (ฯs): 8 MPa
- Design safety factor: C=1.25
- Length: Coils of 100, 200, 300 meters up to 1500 meters (for sizes 16 mm to 32 mm); 100-meter coils for sizes 40 mm to 160 mm
- Manufactured according to ISO 4427-2
