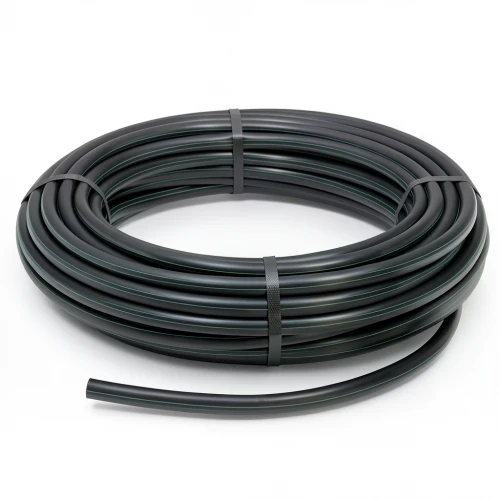

HDPE Polyethylene Coil Pipe Nominal Pressure 9.8 Bar [PE 63] Outside Diameter 50 mm SDR 9 Color Black | Almona Company

This HDPE coil pipe from Al Mona Company is engineered for demanding irrigation and water supply applications across the UAE. Made from high-density polyethylene (PE 63), it delivers outstanding durability and long-term performance, even under the harsh desert climate.

With a nominal pressure rating of 9.8 bar and an SDR 9 standard dimension ratio, this pipe is built to handle high-pressure water networks with ease. Its smooth interior ensures efficient flow, while its resistance to corrosion and external factors guarantees a maintenance-free service life of up to 50 years.

Key Features

• Outside diameter: 50 mm
• Wall thickness: 5.6 mm
• Weight: 0.788 kg/m
• Pressure rating: 9.8 bar
• Pipe series (S): 4
• Material grade: PE 63
• Color: Black
• Minimum Required Strength (MRS): 6.3 MPa
• Design stress (σs): 3.94 MPa
• Design safety factor: C=1.6
• Manufactured according to DIN 8074/8075

Available in coil lengths of 100, 200, and 300 meters (up to 1500 meters for sizes 16-32 mm) and 100-meter coils for sizes 40-160 mm, this pipe adapts to a wide range of project requirements in Dubai, Abu Dhabi, and across the Emirates.
