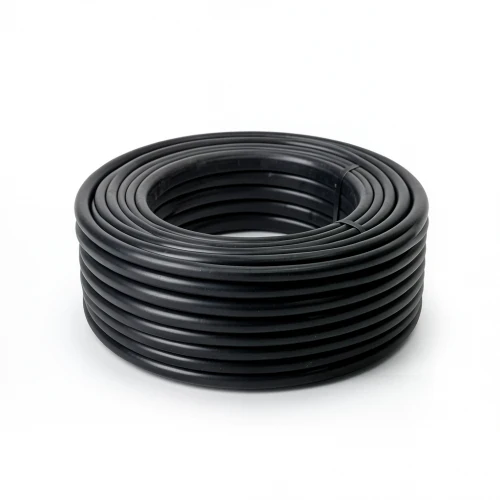

HDPE Polyethylene Coil Pipe Nominal Pressure 6 Bar [PE 80] OD 50 mm SDR 22 Color Black | Almona Factory

This HDPE coil pipe from Al-Mona Factory is engineered for reliable performance in demanding irrigation and water transfer applications across the UAE. Manufactured from high-density polyethylene (PE 80) with a nominal pressure rating of 6 bar, this pipe combines strength, flexibility, and long-term durability, making it a smart choice for projects from Dubai to Abu Dhabi and beyond.

The pipe's SDR 22 dimension ratio ensures consistent wall thickness, providing excellent resistance to internal pressure and external loads. With a minimum required strength (MRS) of 8 MPa and a design safety factor of C=1.25, it offers peace of mind for critical installations. The black color provides enhanced UV resistance, allowing for extended outdoor exposure—a key advantage in the UAE's sunny climate.

Key Features

• Material grade: PE 80 (high-density polyethylene)
• Outside diameter: 50 mm; wall thickness: 2.3 mm
• Pressure rating: 6 bar; pipe series (S): 10.5
• Standard dimension ratio: SDR 22
• Manufactured according to DIN 8074/8075
• Weight: 0.361 kg/m
• Available in coils of 100 meters (for sizes 40 mm to 160 mm) and longer coils (100–1500 m) for smaller sizes
• Black color with UV resistance
• 50-year maintenance-free service life

Whether you're upgrading agricultural irrigation systems in Al Ain, installing landscaping water lines in Dubai, or managing industrial fluid transfer in Sharjah, this HDPE coil pipe delivers dependable performance. Its flexibility simplifies installation, reducing the need for fittings and joints, while its corrosion resistance ensures clean water delivery.
