HDPE Polyethylene Coil Pipe Nominal Pressure 3.9 Bar [PE 63] OD 63 mm SDR 21 Color Black | Almona Factory

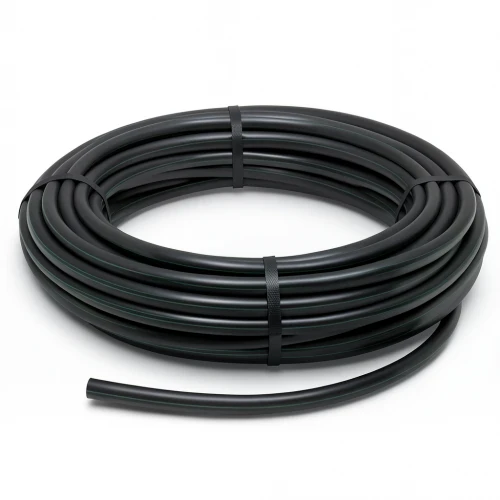

This HDPE (high-density polyethylene) coil pipe, manufactured by Al Mona Factory, is a premium solution for irrigation and water conveyance systems across the United Arab Emirates. With an outside diameter of 63 mm and a nominal pressure of 3.9 bar (SDR 21), it delivers reliable performance in demanding conditions, from agricultural farms in Al Ain to landscaping projects in Dubai and Abu Dhabi.

Engineered to meet the DIN 8074/8075 standards, this pipe offers exceptional durability and a maintenance-free service life of up to 50 years. Its lightweight construction simplifies handling and installation, reducing labor costs and project timelines. The black color provides superior protection against UV radiation and external environmental factors, making it suitable for exposed installations in the UAE's harsh climate.

Key Features

• Outside diameter: 63 mm
• Wall thickness: 3.0 mm
• Material weight: 0.399 kg/m
• Standard dimensional ratio: SDR 21
• Nominal pressure: 3.9 bar
• Pipe series (S): 10
• Material grade: PE 63
• Color: Black
• Minimum required strength (MRS): 6.3 MPa
• Design stress (σs): 3.94 MPa
• Design safety factor: C=1.6
• Manufactured according to: DIN 8074/8075

Available in coil lengths of 100, 200, 300, and up to 1500 meters (for sizes 16 mm to 32 mm), and in 100-meter coils for sizes 40 mm to 160 mm, this pipe offers flexibility for various project scales. Whether for potable water distribution, irrigation networks, or industrial applications, this HDPE coil pipe is a robust and cost-effective choice for the UAE market.
