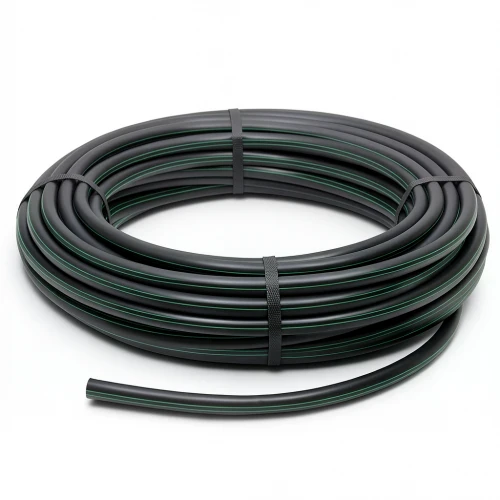

HDPE Polyethylene Coil Pipe Nominal Pressure 15.7 Bar [PE 63] OD 90 mm SDR 6 Color Black | Almona Factory

Introducing the HDPE (High-Density Polyethylene) coil pipe from Al Mona Factory, a robust solution engineered for high-pressure fluid conveyance. This pipe, with a nominal pressure of 15.7 bar and a standard dimension ratio (SDR) of 6, is specifically designed to meet the demanding requirements of modern irrigation and water supply systems across the United Arab Emirates.

Manufactured from premium PE 63 grade material, this pipe offers exceptional durability and a remarkable 50-year maintenance-free lifespan. Its high-pressure resistance makes it ideal for water networks operating under significant stress, ensuring reliable performance in both residential and commercial projects. The pipe's superior resistance to external factors, including UV radiation and soil chemicals, makes it a dependable choice for the UAE's harsh desert climate.

Key Features & Specifications

• Outside Diameter: 90 mm
• Wall Thickness: 15.0 mm
• Material Weight: 3.51 kg/m
• Standard Dimension Ratio (SDR): 6
• Nominal Pressure: 15.7 bar
• Pipe Series (S): 2.5
• Material Grade: PE 63
• Color: Black
• Minimum Required Strength (MRS): 6.3 MPa
• Design Stress (σs): 3.94 MPa
• Design Safety Factor: C=1.6
• Available Lengths: Coils of 100, 200, 300 meters (up to 1500 meters for sizes 16 mm to 32 mm); 100-meter coils for sizes 40 mm to 160 mm
• Manufacturing Standard: DIN 8074/8075

This pipe is perfect for a wide range of applications in the UAE, including agricultural irrigation, landscaping projects in Dubai and Abu Dhabi, and municipal water distribution. Its flexibility and coil form facilitate easy transportation and installation, reducing labor costs and installation time. Trust Al Mona Factory for high-quality piping solutions that stand the test of time.
