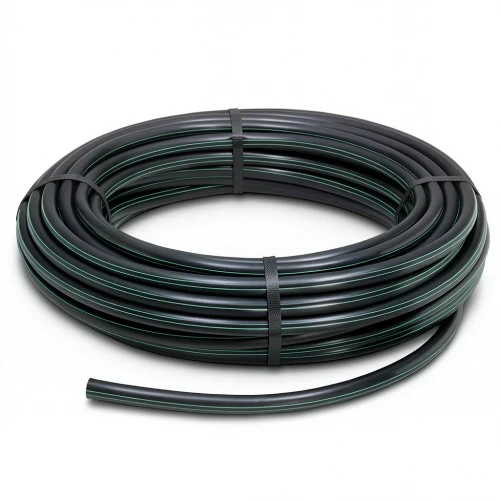

HDPE Polyethylene Coil Pipe Nominal Pressure 15.7 Bar [PE 63] OD 50 mm SDR 6 Color Black | Almona Company

This HDPE coil pipe from Al Mona is engineered for demanding irrigation and water-supply projects across the UAE, from Dubai’s landscaping networks to Abu Dhabi’s agricultural developments. Made from high-density polyethylene (PE 63), it delivers reliable performance under high pressure and harsh desert conditions.

With a nominal pressure of 15.7 bar and an SDR 6 rating, this pipe is built to handle intense water flow, making it suitable for mainlines and sub-mains in pressurized irrigation systems. Its black color provides natural UV resistance, ensuring long-term durability under the intense Gulf sun. The pipe offers a maintenance-free service life of up to 50 years, reducing operational costs and downtime.

Key Features

• Outside diameter: 50 mm
• Wall thickness: 8.3 mm
• Weight: 1.09 kg/m
• Standard dimension ratio: SDR 6
• Pressure rating: 15.7 bar
• Pipe series (S): 2.5
• Material grade: PE 63
• Color: Black
• Minimum required strength (MRS): 6.3 MPa
• Design stress (σs): 3.94 MPa
• Design safety factor: C=1.6
• Length: Coils (100 m, 200 m, 300 m up to 1500 m) for sizes 16 mm to 32 mm
• Length 2: 100 m coils for sizes 40 mm to 160 mm
• Manufactured according to DIN 8074/8075

Ideal for use in the UAE’s agricultural farms, municipal irrigation networks, and landscaping projects, this pipe ensures efficient water delivery with minimal friction loss. Its flexibility and coil form simplify installation, especially in remote or challenging terrains common in the region.
