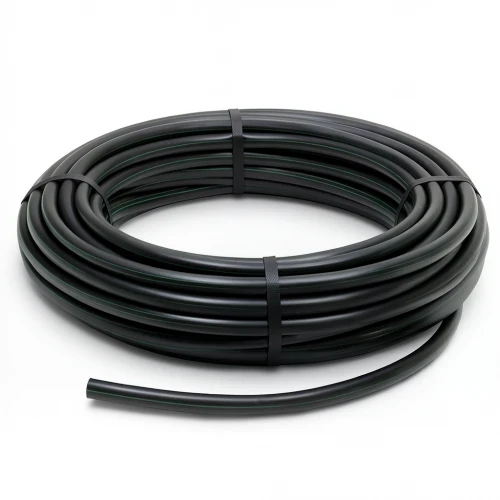

HDPE Polyethylene Coil Pipe Nominal Pressure 15.7 Bar [PE 63] OD 20 mm SDR 6 Color Black | Almona Company
(8 Product Views)
High-density polyethylene coil pipe for irrigation systems, rated 15.7 bar (SDR 6), with 20 mm outer diameter and black color, manufactured by Al Mona Company.
in stock
Product description
This HDPE coil pipe from Al Mona Company is engineered for efficient and durable fluid conveyance, making it a reliable choice for irrigation and water supply systems across the UAE. Its high-density polyethylene construction ensures resistance to high pressure and external elements, providing a long service life with minimal maintenance.
Key Features
- Nominal pressure: 15.7 bar (SDR 6)
- Outside diameter: 20 mm, wall thickness: 3.4 mm
- Material grade: PE 63, with minimum required strength (MRS) of 6.3 MPa
- Design stress: 3.94 MPa, safety factor C=1.6
- Black color for UV protection
- Available in coil lengths from 100 to 1500 meters (for sizes 16-32 mm) and 100-meter coils for sizes 40-160 mm
- Manufactured to DIN 8074/8075 standards
Applications in the UAE
Ideal for agricultural irrigation, landscaping projects, and municipal water networks in Dubai, Abu Dhabi, and other emirates, where high-pressure performance and durability are essential. The flexibility of the coil pipe simplifies installation, reducing labor time and costs, especially in challenging terrains.
