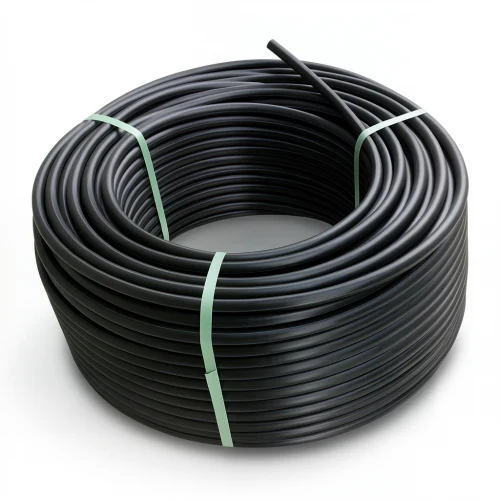

HDPE Polyethylene Coil Pipe Nominal Pressure 12.5 Bar [PE 100] OD 50 mm SDR 13.6 Color Black | Almona Factory

HDPE Polyethylene Coil Pipe Nominal Pressure 12.5 Bar [PE 100] OD 50 mm SDR 13.6 Color Black | Almona Factory

(43 Product Views)

High-density polyethylene (HDPE) coil pipe, PE 100 grade, 50 mm outside diameter, rated for 12.5 bar, ideal for water networks across the UAE. Manufactured by Al-Mona to ISO 4427-2 standards.

in stock

Quantity

Call Now

Product description

This HDPE coil pipe from Al-Mona Factory is engineered for reliable water transportation in the demanding climate of the United Arab Emirates. Made from high-density polyethylene (PE 100), it offers exceptional strength, durability, and resistance to corrosion, rust, and chemicals, ensuring a long service life even under harsh conditions.

The pipe's black color provides UV resistance, making it suitable for above-ground installations exposed to the intense UAE sun. With a nominal pressure of 12.5 bar and an SDR 13.6 rating, it delivers consistent performance in municipal, agricultural, and industrial water supply systems.

Key Features

Material: High-density polyethylene (HDPE) grade PE 100
Outside diameter: 50 mm
Wall thickness: 3.7 mm
Standard dimensional ratio (SDR): 13.6
Nominal pressure: 12.5 bar
Pipe series (S): 6.3
Minimum required strength (MRS): 10 MPa
Design stress: 8 MPa
Design safety factor: C=1.25
Color: Black (UV resistant)
Manufactured according to ISO 4427-2
Available in coil lengths: 100, 200, 300 meters (up to 1500 meters for sizes 16-32 mm); 100-meter coils for sizes 40-160 mm

Ideal for potable water lines, irrigation networks, and industrial piping across Dubai, Abu Dhabi, and the Northern Emirates, this pipe offers easy handling and installation, reducing project time and costs.
