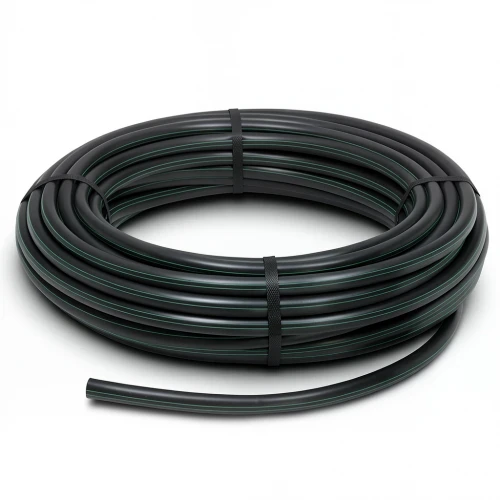

HDPE Polyethylene Coil Pipe Nominal Pressure 10 Bar [PE 80] OD 25 mm SDR 13.6 Color Black | Almona Factory

Al Mona Factory presents its premium HDPE (high-density polyethylene) coil pipes, engineered for reliable and efficient liquid transportation. These pipes are manufactured to meet the rigorous demands of modern water networks, especially in the challenging climate of the United Arab Emirates.

Constructed from PE 80 grade material, these pipes offer exceptional durability and a long service life of up to 50 years with minimal maintenance. They are specifically designed to withstand high water pressure, making them a dependable choice for municipal water supply lines, irrigation systems, and industrial applications across Dubai, Abu Dhabi, and the wider region.

Key Features

• Nominal pressure: 10 bar
• Outside diameter: 25 mm
• Standard dimensional ratio (SDR): 13.6
• Pipe series (S): 6.3
• Material grade: PE 80
• Minimum required strength (MRS): 8 MPa
• Design stress (σs): 6.4 MPa
• Design safety factor: C=1.25
• Wall thickness: 1.9 mm
• Material weight: 0.144 kg/m
• Color: Black
• Manufactured according to DIN 8074/8075

Available in convenient coil lengths: 100, 200, 300 meters and up to 1500 meters for sizes from 16 mm to 32 mm; and 100-meter coils for sizes from 40 mm to 160 mm. This flexibility ensures you can find the right length for your project, reducing waste and installation time.

Whether you are working on a residential irrigation system in Sharjah or a large-scale infrastructure project in Abu Dhabi, these HDPE pipes provide superior protection against external factors and ensure a long-lasting, maintenance-free performance.
