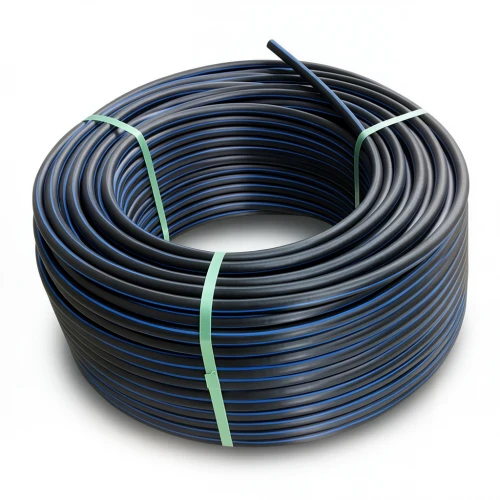

HDPE Polyethylene Coil Pipe Nominal Pressure 10 Bar [PE 100] OD 40 mm SDR 17 Color Black with Blue Stripes | Almona Factory

This HDPE coil pipe from Al Mona Factory is engineered for reliable water transportation in demanding environments, including the UAE's infrastructure projects. Made from high-density polyethylene (PE100), it offers exceptional durability and long-term performance, with a maintenance-free lifespan of 50 years.

Designed to withstand high pressures, this pipe is rated at 10 bar, making it suitable for water networks under significant stress. Its SDR 17 rating ensures optimal wall thickness for pressure applications, while the black color with blue stripes provides easy identification for water lines.

Key Features

• Outside diameter: 40 mm
• Wall thickness: 2.4 mm
• Material weight: 0.299 kg/m
• Standard dimensional ratio: SDR 17
• Pressure rating: 10 bar
• Pipe series (S): 8
• Material grade: PE100
• Color: Black with blue stripes
• Minimum required strength (MRS): 10 MPa
• Design stress (σs): 8 MPa
• Design safety factor: C=1.25
• Length: Coils of 100, 200, 300 meters up to 1500 meters (for sizes 16-32 mm); 100-meter coils for sizes 40-160 mm
• Manufactured according to DIN 8074/8075

Ideal for potable water supply, irrigation, and industrial applications across Dubai, Abu Dhabi, and the Northern Emirates, this pipe resists corrosion, chemical attack, and external impacts, ensuring reliable service in harsh desert climates.
