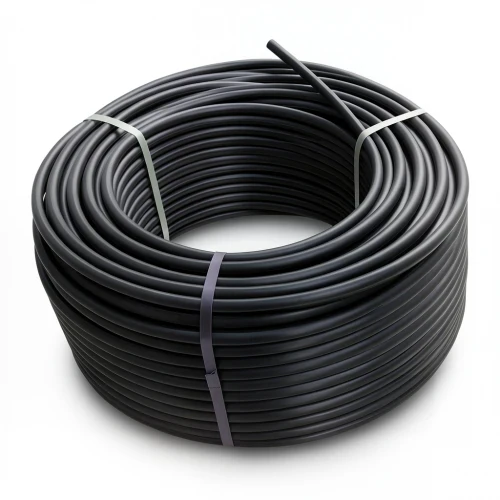

HDPE Plastic Coil Pipe PN 9.9 Bar [PE 100] Outside Diameter 90 mm SDR 13.6 Color Black | Almona Factory

Our HDPE coil pipes, manufactured by Al Mona Factory in accordance with DIN 8074/8075, are the ideal solution for water transportation networks across the United Arab Emirates. Crafted from high-density polyethylene (PE100), these pipes deliver exceptional durability and performance, ensuring efficient liquid conveyance even under demanding conditions.

Key Features

• High pressure resistance (9.9 bar) suitable for pressurized water systems
• Long service life: up to 50 years with minimal maintenance
• UV resistant, perfect for outdoor installations in the UAE's sunny climate
• Flexible and earthquake-resistant, reducing risk of joint failure
• Chemical resistant (pH 2-12), ideal for various industrial applications

Specifications

• Outside Diameter: 90 mm
• Standard Dimension Ratio (SDR): 13.6
• Pipe Series (S): 6.3
• Material Grade: PE 100
• Pressure Rating: 9.9 bar
• Wall Thickness: 6.7 mm
• Minimum Required Strength (MRS): 10 MPa
• Weight: 1.79 kg/m
• Design Safety Factor: C=1.6 (σs = 6.25 MPa)
• Color: Black

Applications in the UAE

These pipes are widely used in municipal water supply, irrigation systems, and industrial fluid transport across Dubai, Abu Dhabi, and other emirates. Their robustness and flexibility make them a preferred choice for both above-ground and buried installations, withstanding the region's high temperatures and seismic activity.

Available in coil lengths: 100m, 200m, 300m up to 1500m for sizes 16mm-32mm; and 100m coils for sizes 40mm-160mm.
