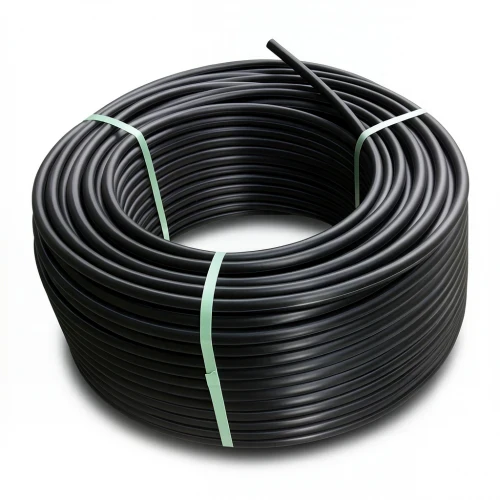

HDPE Plastic Coil Pipe PN 9.9 Bar [PE 100] OD 40 mm SDR 13.6 Color Black | Almona Factory

Almona Factory presents a premium range of HDPE (high-density polyethylene) coil pipes, engineered for reliable water transportation across the United Arab Emirates. Manufactured to DIN 8074/8075 standards, these pipes combine flexibility with exceptional durability, making them a preferred choice for contractors, municipalities, and industrial projects in Dubai, Abu Dhabi, and the Northern Emirates.

Key Features

• High Pressure Resistance: Rated at 9.9 bar, suitable for demanding water networks.
• Long Service Life: Over 50 years of maintenance-free operation under normal conditions.
• UV & Weather Resistant: Withstands prolonged sun exposure, ideal for the UAE's hot climate.
• Earthquake Resistant: High flexibility of pipe and welded joints absorb ground movement.
• Chemical Resistance: Tolerates a wide pH range (2 to 12), protecting against corrosive soils and fluids.
• Flexible & Easy Installation: Reduces the need for fittings and simplifies trenching, saving time and labor.

Specifications

• Outside Diameter: 40 mm
• Standard Dimension Ratio (SDR): 13.6
• Pipe Series (S): 6.3
• Material Grade: PE 100
• Pressure Rating: 9.9 bar
• Wall Thickness: 3 mm
• Minimum Required Strength (MRS): 10 MPa
• Weight: 0.360 kg/m
• Design Safety Factor: C=1.6
• Design Stress (σs): 6.25 MPa
• Color: Black
• Length: Available in coils of 100, 200, 300 meters (up to 1500 m for sizes 16-32 mm); 100-meter coils for sizes 40-160 mm

Applications in the UAE

These HDPE pipes are widely used for potable water distribution, irrigation systems, and industrial fluid transport. Their flexibility and corrosion resistance make them suitable for challenging terrains and aggressive soil conditions found in the region. Whether for new developments or retrofitting existing networks, Almona Factory's HDPE coil pipes deliver long-term performance and peace of mind.
