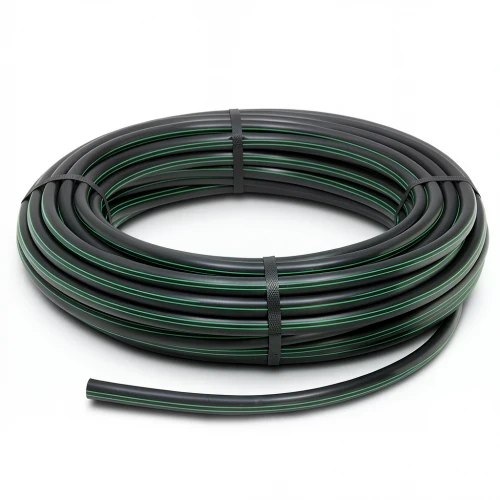

HDPE Plastic Coil Pipe PN 9.8 Bar [PE 63] OD 16 mm SDR 9 Color Black with Green Stripes | Almona Factory

These HDPE (high-density polyethylene) coil pipes from Almona Factory are engineered for reliable water transportation networks across the United Arab Emirates. Manufactured to DIN 8074/8075 standards, they offer exceptional durability and long-term performance, making them a preferred choice for both potable water and irrigation systems in Dubai, Abu Dhabi, and beyond.

Key Features

• Material: High-density polyethylene (PE63)
• Pressure rating: 9.8 bar
• Outside diameter: 16 mm
• Standard dimension ratio (SDR): 9
• Wall thickness: 1.8 mm
• Minimum required strength (MRS): 6.3 MPa
• Design safety factor: C=1.6 (σs = 3.94 MPa)
• Color: Black with green stripes
• Weight: 0.084 kg/m
• Length: Available in coils of 100, 200, 300, up to 1500 meters (for sizes 16–32 mm); 100-meter coils for sizes 40–160 mm

Advantages

These pipes withstand high water pressure, making them ideal for networks subjected to demanding conditions. With a lifespan of over 50 years and minimal maintenance, they offer a cost-effective solution for long-term projects. Their resistance to UV radiation and chemical corrosion (pH range 2–12) ensures reliable performance in the UAE's harsh climate and varied soil conditions. Additionally, their flexibility provides excellent earthquake resistance, crucial for infrastructure resilience.

Applications in the UAE

Perfect for water supply lines, irrigation systems, and industrial fluid transport in residential, commercial, and agricultural projects. Their coil format simplifies handling and installation, reducing labor costs and time on site.
