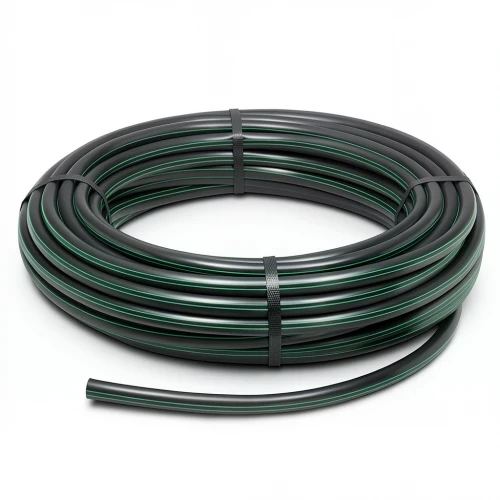

HDPE Plastic Coil Pipe PN 6 Bar [PE 80] Outside Diameter 63 mm SDR 22 Color Black with Green Stripes | Almona Factory

Almona Factory presents high-density polyethylene (HDPE) coil pipes engineered for robust water transportation networks, compliant with DIN 8074/8075 standards. These pipes are the preferred choice for efficient liquid conveyance, offering exceptional durability and performance in the demanding climate of the United Arab Emirates.

Key Features

• High pressure resistance: withstands up to 6 bar, suitable for high-pressure water systems
• Long service life: maintenance-free for 50 years, reducing operational costs
• UV resistant: can endure prolonged exposure to sunlight, ideal for outdoor installations in Dubai and Abu Dhabi
• Chemical corrosion resistance: compatible with a wide pH range (2-12), ensuring reliability in various applications
• Earthquake resistant: high flexibility of pipes and welded joints provides resilience against seismic activity
• Available in coil lengths: 100m, 200m, 300m up to 1500m for sizes 16mm-32mm; 100m coils for sizes 40mm-160mm

Technical Specifications

• Outside Diameter: 63 mm
• Standard Dimension Ratio: SDR 22
• Pipe Series (S): 10.5
• Material Grade: PE 80
• Pressure Rating: 6 bar
• Wall Thickness: 2.9 mm
• Minimum Required Strength (MRS): 8 MPa
• Weight: 0.563 kg/m
• Design Safety Factor: C=1.25
• Color: Black with green stripes

Applications in the UAE

These HDPE coil pipes are versatile and widely used across the Emirates for irrigation networks in agriculture and landscaping, municipal water supply lines, and industrial fluid transport. Their resistance to harsh sunlight and chemical exposure makes them a reliable choice for projects in Sharjah's industrial zones and the desert outskirts of Al Ain. With easy handling and installation, they are a cost-effective solution for both temporary and permanent piping needs.
