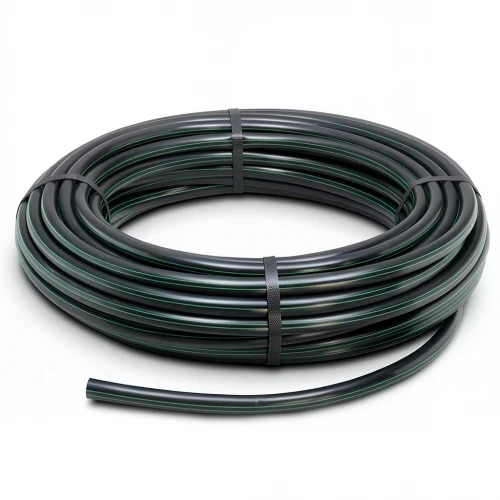

HDPE Plastic Coil Pipe PN 6 Bar [PE 80] OD 75 mm SDR 22 Color Black with Green Stripes | Almona Factory

Al Mona Factory presents its premium HDPE coil pipes, engineered for reliable water transportation in the demanding climate of the United Arab Emirates. Manufactured in accordance with DIN 8074/8075, these pipes are crafted from high-density polyethylene (PE 80), ensuring exceptional durability and long-lasting performance.

Key Features

• Pressure rating: 6 bar
• Outer diameter: 75 mm
• Standard dimension ratio (SDR): 22
• Pipe series (S): 10.5
• Wall thickness: 3.5 mm
• Material grade: PE 80 with Minimum Required Strength (MRS) of 8 MPa
• Design safety factor: C=1.25
• Weight: 0.807 kg/m
• Color: Black with green stripes
• Available in coils of 100, 200, and 300 meters (up to 1500 m for sizes 16–32 mm; 100 m coils for sizes 40–160 mm)

Applications in the UAE

These HDPE pipes are ideal for potable water supply networks, irrigation systems, and industrial applications across Dubai, Abu Dhabi, and Sharjah. Their flexibility and resistance to UV radiation make them suitable for above-ground installations under the intense Gulf sun, while their chemical resistance (pH 2–12) ensures reliable service in diverse environments.

With a maintenance-free lifespan of 50 years and excellent resistance to seismic activity, these pipes provide a cost-effective and dependable solution for both new projects and infrastructure upgrades throughout the Emirates.
