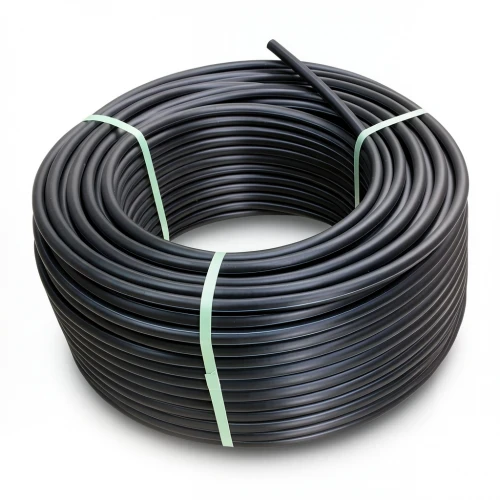

HDPE Plastic Coil Pipe PN 5 Bar [PE 80] Outside Diameter 140 mm SDR 26 Color Black | Almona Factory

Almona Factory presents HDPE (High-Density Polyethylene) pipe coils, engineered for reliable performance in water transportation and distribution systems. Manufactured to ISO 4427-2 standards, these pipes combine strength, flexibility, and long-term durability, making them a preferred choice for infrastructure projects across the United Arab Emirates, from Dubai's urban developments to Abu Dhabi's industrial zones.

Key Features

• Material: PE 80 grade, ensuring high resistance to impact and environmental stress cracking.
• Pressure rating: 5 bar (PN 5), suitable for low-pressure water supply applications.
• Outer diameter: 140 mm, with a standard dimension ratio (SDR) of 26.
• Wall thickness: 5.4 mm, providing structural integrity and longevity.
• Minimum Required Strength (MRS): 8 MPa, with a design stress of 6.4 MPa and a safety factor of C=1.25.
• Color: black, offering UV resistance for outdoor installations.
• Available in coil lengths: 100, 200, 300 meters up to 1500 meters for sizes 16 mm to 32 mm; 100-meter coils for sizes 40 mm to 160 mm.

Applications in the UAE

These HDPE coils are ideal for water supply networks, irrigation systems, and temporary or permanent pipeline installations. Their corrosion resistance and ability to withstand harsh desert conditions make them suitable for both above-ground and underground use, ensuring minimal maintenance and extended service life in the UAE's demanding climate.
