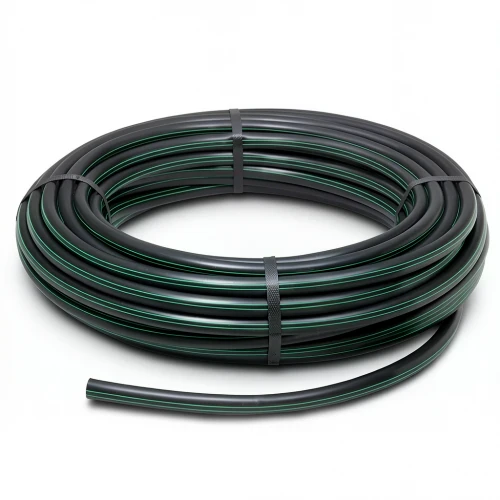

HDPE Plastic Coil Pipe PN 4 Bar [PE 80] OD 50 mm SDR 33 Color Black with Green Stripes | Almona Factory

Upgrade your water infrastructure with the HDPE Plastic Coil Pipe from Almona Factory, engineered for the demanding conditions of the UAE. Manufactured to DIN 8074/8075, this pipe delivers reliable performance for irrigation and water transportation networks, whether in Dubai's urban developments or Abu Dhabi's agricultural projects.

Key Features

• High-density polyethylene (PE 80) construction ensures exceptional durability and long-term reliability.
• Rated for 4 bar pressure, suitable for low-pressure water distribution systems.
• UV-resistant: withstands prolonged sun exposure without degradation—critical for the UAE's intense climate.
• Flexible and earthquake-resistant: welded joints maintain integrity under ground movement.
• Chemical-resistant: handles a wide pH range (2 to 12) for diverse applications.
• Maintenance-free service life of 50 years, reducing lifecycle costs.

Specifications

• Outside Diameter: 50 mm
• Standard Dimension Ratio (SDR): 33
• Pipe Series (S): 16
• Material Grade: PE 80
• Pressure Rating: 4 bar
• Wall Thickness: 1.8 mm
• Minimum Required Strength (MRS): 8 MPa
• Weight: 0.287 kg/m
• Design Safety Factor: C=1.25
• Color: Black with green stripes
• Available in coils: 100m, 200m, 300m up to 1500m (sizes 16mm-32mm); 100m coils for sizes 40mm-160mm

Ideal for agricultural irrigation, landscaping, and municipal water supply projects across the Emirates, this coil pipe offers easy handling and quick installation, saving time and labor on site.
