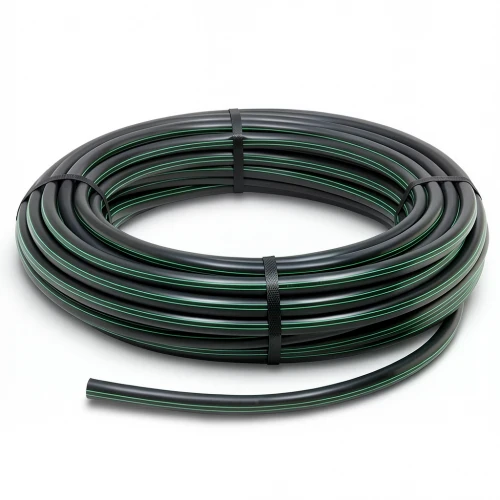

HDPE Plastic Coil Pipe PN 4 Bar [PE 80] OD 110 mm SDR 33 Color Black with Green Stripes | Almona Factory

Introducing the HDPE Plastic Coil Pipe from Almona Factory, a premium solution for water transportation networks across the United Arab Emirates. Manufactured in accordance with DIN 8074/8075, these pipes are engineered from high-density polyethylene (PE 80) to deliver exceptional durability and performance in demanding conditions.

Key Features

• Pressure rating: 4 bar, suitable for high-pressure water systems
• Outer diameter: 110 mm with SDR 33 and pipe series S 16
• Wall thickness: 4.2 mm, ensuring robust structural integrity
• Material grade: PE 80 with Minimum Required Strength (MRS) of 8 MPa
• Design safety factor: C=1.25 for enhanced reliability
• Weight: 1.43 kg/m, easy to handle and install
• Color: Black with green stripes for clear identification
• Available in coils: 100, 200, 300 meters up to 1500 meters (for sizes 16-32 mm) and 100-meter coils for sizes 40-160 mm
• Long service life: 50 years of maintenance-free operation
• Excellent resistance to corrosion, chemicals (pH 2-12), and UV exposure
• High flexibility for earthquake resistance and easy installation

Applications in the UAE

These HDPE pipes are ideal for potable water distribution, irrigation systems, and industrial fluid transport across Dubai, Abu Dhabi, and Sharjah. Their resistance to harsh desert climates and UV radiation makes them a dependable choice for outdoor installations, while their flexibility suits the region's dynamic infrastructure projects.
