HDPE Plastic Coil Pipe PN 4 Bar [PE 63] OD 160 mm SDR 26 Color Black with Green Stripes | Almona Factory

Almona Factory presents its HDPE coil pipes, engineered to meet the rigorous demands of water transportation networks across the United Arab Emirates. Manufactured in accordance with DIN 8074/8075, these pipes are crafted from high-density polyethylene (PE 63), ensuring robust performance in both potable water supply and irrigation systems.

Key Features

• Pressure rating: PN 4 bar, suitable for low-pressure water lines
• Outer diameter: 160 mm with a wall thickness of 6.2 mm
• Standard Dimension Ratio (SDR 26) with pipe series (S) of 12.5
• Material grade PE 63 with Minimum Required Strength (MRS) of 6.3 MPa
• Design safety factor C=1.25 and design stress σs=5.04 MPa

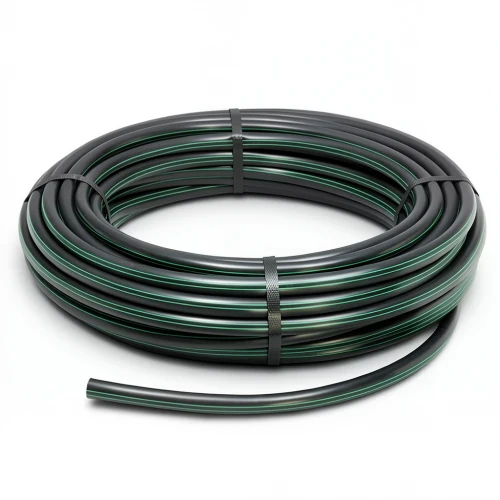

• Black pipe with green stripes for easy identification
• Supplied in coils of 100 meters, ideal for long-distance installations

Applications in the UAE

These HDPE pipes are perfect for the UAE's demanding climate, offering excellent resistance to UV radiation and chemical corrosion (pH 2–12). Their flexibility provides earthquake resistance, a valuable trait in the region. With a lifespan exceeding 50 years and minimal maintenance, they are a cost-effective solution for municipal water networks, agricultural irrigation, and industrial fluid transport in Dubai, Abu Dhabi, and across the Emirates.
