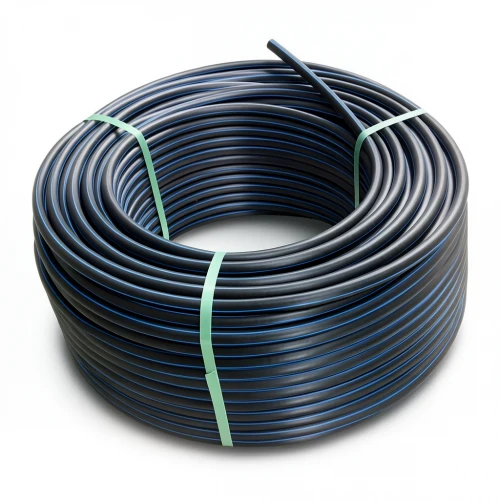

HDPE Plastic Coil Pipe PN 4 Bar [PE 100] Outside Diameter 90 mm SDR 41 Color Black with Blue Stripes | Almona Factory

This HDPE coil pipe from Almona Factory is engineered for reliable water transportation networks across the United Arab Emirates. Made from high-density polyethylene (PE 100), it offers exceptional durability and long-term performance, with a service life of up to 50 years requiring minimal maintenance.

Designed to withstand high water pressures, this pipe is ideal for municipal water supply systems, irrigation projects, and industrial applications commonly found in Dubai, Abu Dhabi, and other emirates. Its resistance to corrosion and external factors ensures consistent performance even in harsh desert conditions.

Key Specifications

• Outside diameter: 90 mm
• Wall thickness: 2.2 mm
• Weight: 0.647 kg/m
• Standard dimensional ratio (SDR): 41
• Pressure rating: 4 bar
• Pipe series (S): 20
• Material grade: PE 100
• Color: Black with blue stripes
• Minimum required strength (MRS): 10 MPa
• Design stress (σs): 8 MPa
• Design safety factor: C = 1.25
• Manufactured to: DIN 8074/8075

Available Lengths

Available in coils of 100, 200, 300 meters up to 1500 meters for sizes 16 mm to 32 mm, and 100-meter coils for sizes 40 mm to 160 mm.
