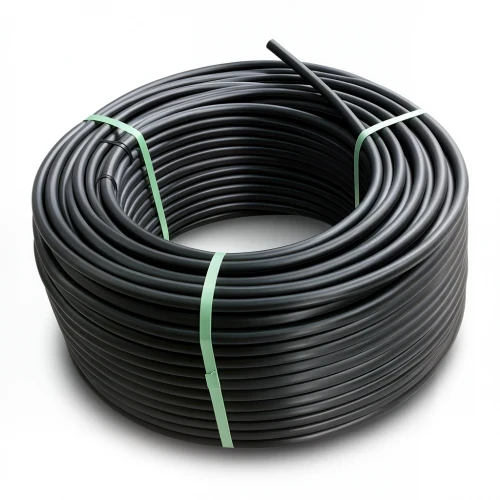

HDPE Plastic Coil Pipe PN 4 Bar [PE 100] OD 75 mm SDR 33 Color Black | Almona Factory

Almona Factory presents its high-density polyethylene (HDPE) coil pipes, engineered for reliable water transportation in demanding environments. Manufactured in accordance with DIN 8074/8075, these pipes are a superior choice for water supply networks across the United Arab Emirates, from Dubai's urban infrastructure to Abu Dhabi's industrial projects.

HDPE pipes offer exceptional durability and performance. They withstand high water pressure, making them suitable for networks operating under significant stress. With a design life of 50 years and minimal maintenance, they provide a long-term solution for water distribution. Their flexibility and resistance to seismic activity ensure reliability in the UAE's dynamic conditions, while their UV resistance makes them ideal for exposed installations under the intense Gulf sun.

These pipes also exhibit excellent chemical resistance, tolerating a wide pH range (2 to 12), which is crucial for various industrial and agricultural applications. Their lightweight nature simplifies handling and installation, reducing labor and logistics costs.

Key Specifications:

• Outer Diameter: 75 mm
• Standard Dimension Ratio: SDR 33
• Pipe Series (S): 16
• Material Grade: PE 100
• Pressure Rating: 4 bar
• Wall Thickness: 2.3 mm
• Minimum Required Strength (MRS): 10 MPa
• Material Weight: 0.557 kg/m
• Design Safety Factor: C=1.6, σs = 6.25 MPa
• Color: Black
• Length: Available in coils of 100, 200, 300 meters (up to 1500 meters for sizes 16-32 mm); 100-meter coils for sizes 40-160 mm

Whether for municipal water lines, irrigation systems, or industrial fluid transport, Almona's HDPE coil pipes deliver performance and longevity. Choose from a variety of sizes to meet your project needs.
