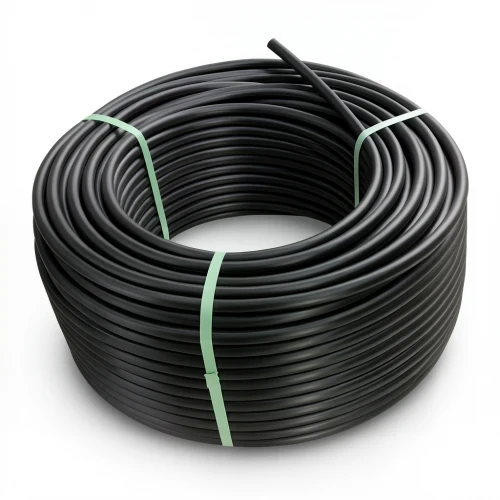

HDPE Plastic Coil Pipe PN 4 Bar [PE 100] OD 110 mm SDR 33 Color Black | Almona Factory

Almona Factory presents premium HDPE coil pipes, engineered for efficient and reliable water transportation networks across the United Arab Emirates. Manufactured in accordance with DIN 8074/8075 standards, these pipes are crafted from high-density polyethylene (PE100), ensuring exceptional durability and performance in demanding conditions.

Key Features

• High resistance to water pressure, ideal for high-pressure water networks
• 50-year maintenance-free service life, reducing operational costs
• Superior UV resistance, suitable for prolonged outdoor exposure in the UAE's sunny climate
• Flexible and earthquake-resistant, thanks to high pipe and welded joint flexibility
• Chemical corrosion resistance, withstands pH levels from 2 to 12
• Available in coil lengths of 100, 200, 300 meters up to 1500 meters for sizes 16 mm to 32 mm, and 100-meter coils for sizes 40 mm to 160 mm

Technical Specifications

• Outside Diameter: 110 mm
• Standard Dimension Ratio: SDR 33
• Pipe Series (S): 16
• Material Grade: PE 100
• Pressure Rating: 4 bar
• Wall Thickness: 3.4 mm
• Minimum Required Strength (MRS): 10 MPa
• Weight: 1.19 kg/m
• Design Safety Factor: C=1.6
• Design Stress (σs): 6.25 MPa
• Color: Black

These HDPE pipes are the perfect choice for water distribution networks, irrigation systems, and industrial fluid transport in the UAE, offering long-term reliability and ease of installation without the need for extensive groundwork.
