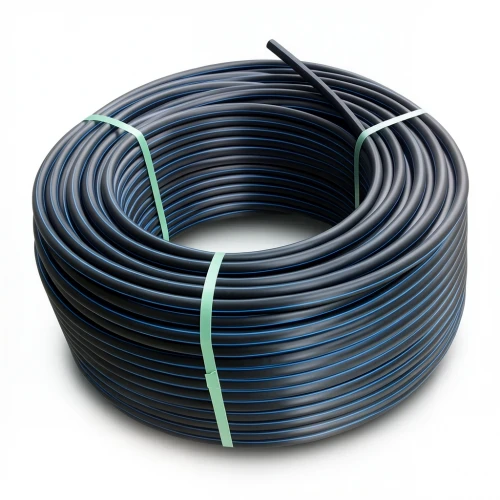

HDPE Plastic Coil Pipe PN 3.2 Bar [PE 100] Outside Diameter 90 mm SDR 41 Color Black with Blue Stripes | Almona Factory

Almona Factory presents HDPE (high-density polyethylene) coil pipes, engineered for efficient and durable water transportation networks across the United Arab Emirates. Manufactured in accordance with DIN 8074/8075, these pipes offer exceptional performance and longevity, making them a preferred choice for infrastructure projects in Dubai, Abu Dhabi, and Sharjah.

Key Features

• Withstands high water pressure, ideal for pressurized networks
• 50-year maintenance-free service life
• Superior resistance to UV radiation, perfect for outdoor installations in the UAE's sunny climate
• High flexibility and welded joint strength, providing earthquake resistance
• Chemical corrosion resistance, compatible with a wide pH range (2 to 12)
• Available in various sizes and coil lengths to suit project needs

Specifications

• Outside Diameter: 90 mm
• Standard Dimension Ratio: SDR 41
• Pipe Series (S): 20
• Material Grade: PE 100
• Pressure Rating: 3.2 bar
• Wall Thickness: 2.2 mm
• Minimum Required Strength (MRS): 10 MPa
• Material Weight: 0.647 kg/m
• Design Safety Factor: C = 1.6
• Design Stress (σs): 6.25 MPa
• Color: Black with blue stripes
• Length: Coils of 100, 200, 300 meters (up to 1500 m) for sizes 16 mm to 32 mm; 100-meter coils for sizes 40 mm to 160 mm

Ideal for water supply lines, irrigation systems, and industrial applications, these HDPE pipes deliver reliable performance in the UAE's demanding environment. Their lightweight nature and easy installation reduce project timelines and costs, ensuring efficient water management for residential, commercial, and municipal projects.
