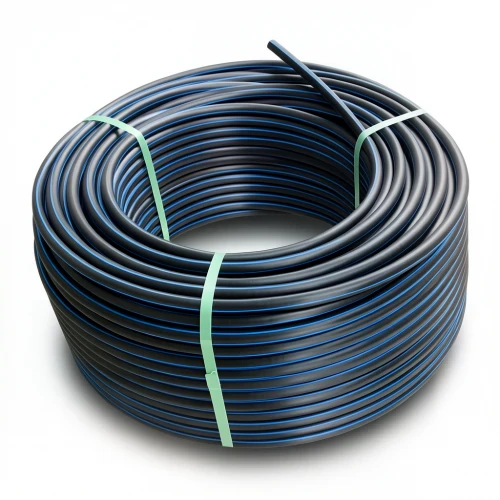

HDPE Plastic Coil Pipe PN 3.2 Bar [PE 100] OD 110 mm SDR 41 Color Black with Blue Stripes | Almona Factory

These HDPE coil pipes, manufactured by Almona Factory in accordance with DIN 8074/8075, deliver reliable performance for water transportation networks throughout the United Arab Emirates. Crafted from high-density polyethylene (PE 100), they combine durability and efficiency to handle demanding applications, from municipal water supply lines to agricultural irrigation systems in Dubai, Abu Dhabi, and Sharjah.

Key Features

• Pressure rating: 3.2 bar (PN 3.2)
• Outside diameter: 110 mm
• Standard dimension ratio: SDR 41
• Pipe series (S): 20
• Material grade: PE 100
• Wall thickness: 2.7 mm
• Minimum Required Strength (MRS): 10 MPa
• Design safety factor: C = 1.6 (σs = 6.25 MPa)
• Weight: 0.952 kg/m
• Color: Black with blue stripes
• Length: Available in coils of 100 meters (for sizes 40 mm to 160 mm) and longer coils up to 1500 meters (for sizes 16 mm to 32 mm)

Applications in the UAE

These pipes are engineered to withstand high water pressure, making them suitable for pressurized water networks common in the UAE's urban and industrial developments. Their flexibility and resistance to seismic activity ensure reliable performance even in challenging ground conditions, while their UV resistance makes them ideal for exposed installations under the intense Gulf sun. With a maintenance-free lifespan of up to 50 years, they offer a cost-effective solution for long-term infrastructure projects.

Additionally, their chemical corrosion resistance (pH range 2–12) allows safe transport of various fluids, and their smooth interior minimizes friction, enhancing flow efficiency. Whether for potable water distribution, irrigation, or industrial applications, these HDPE pipes provide a robust and dependable choice for the UAE market.
