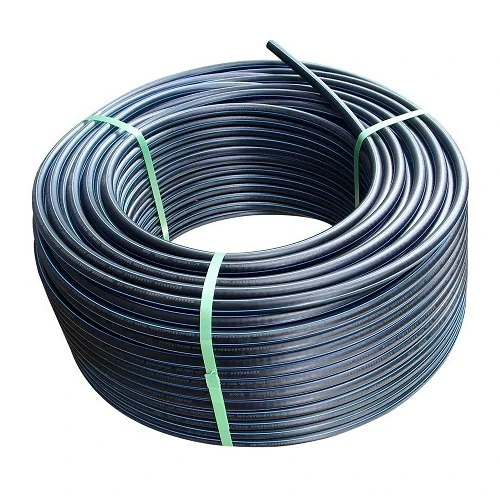

HDPE Plastic Coil Pipe PN 20 Bar [PE 100] Outside Diameter 40 mm SDR 9 Color Black with Blue Stripes | Almona Factory

These HDPE (high-density polyethylene) coil pipes from Almona Factory are engineered for reliable water transportation in the demanding UAE environment. Manufactured to DIN 8074/8075, they deliver exceptional durability and performance, making them a trusted choice for municipal, commercial, and industrial projects across Dubai, Abu Dhabi, and the wider Emirates.

Key Features & Benefits

• High Pressure Resistance: Rated at 20 bar (PN20), these pipes handle high water pressures with ease, ideal for pressurized water networks.
• Long Service Life: Enjoy a maintenance-free lifespan of up to 50 years, reducing lifecycle costs.
• UV and Weather Resistant: Withstand prolonged exposure to the intense UAE sun without degradation.
• Earthquake Resistant: The high flexibility of the pipe and welded joints provides excellent resilience to ground movement.
• Chemical Corrosion Resistance: Safe for a wide range of chemicals (pH 2–12), suitable for diverse industrial applications.
• Lightweight & Flexible: Easy to handle and install, especially in coil form, reducing labor and equipment needs.

Technical Specifications

• Outside Diameter: 40 mm
• Standard Dimension Ratio (SDR): 9
• Pipe Series (S): 4
• Material Grade: PE 100
• Pressure Rating: 20 bar
• Wall Thickness: 4.5 mm
• Minimum Required Strength (MRS): 8 MPa
• Weight: 0.514 kg/m
• Design Safety Factor: C=1.25
• Color: Black with blue stripes
• Length: Coils of 100 meters (also available in longer coils for sizes 16–32 mm)

Whether for potable water supply, irrigation, or industrial fluid handling, these HDPE pipes offer a robust and cost-effective solution. With availability in coil lengths up to 1500 meters (for smaller diameters) and 100-meter coils for this size, they are perfect for projects across the UAE, ensuring minimal joints and faster installation.
