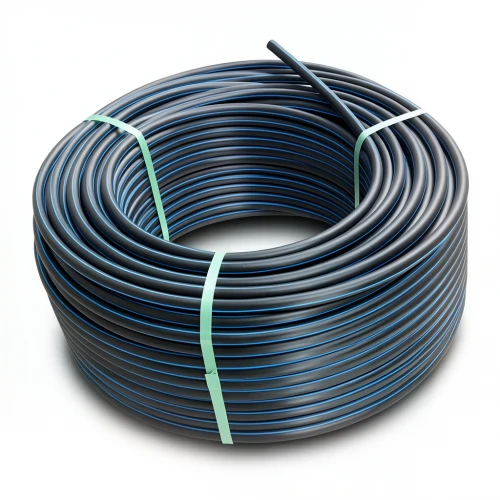

HDPE Plastic Coil Pipe PN 19.2 Bar [PE 100] Outside Diameter 40 mm SDR 7.4 Color Black with Blue Stripes | Almona Factory

Almona Factory presents its premium HDPE (high-density polyethylene) coil pipes, engineered for reliable water transportation in the demanding climate of the United Arab Emirates. Manufactured in accordance with DIN 8074/8075, these pipes deliver outstanding performance and longevity for a wide range of applications.

Thanks to their high pressure rating of 19.2 bar and PE 100 material grade, these pipes are ideally suited for water networks that operate under significant pressure, whether in residential, commercial, or industrial projects across Dubai, Abu Dhabi, and other emirates. With a minimum required strength (MRS) of 10 MPa and a design safety factor of C=1.6, they offer robust and secure operation.

The 40 mm outside diameter and SDR 7.4 standard dimension ratio ensure a consistent wall thickness of 5.5 mm, providing excellent structural integrity. Weighing just 0.607 kg per meter, these pipes are lightweight yet durable, making them easy to handle and install, even in challenging conditions.

HDPE pipes are renowned for their exceptional durability. They offer a maintenance-free service life of 50 years, reducing long-term operational costs. Their high flexibility makes them resistant to earthquakes and ground movement, a valuable feature in a region with varied soil conditions. Additionally, they provide superior protection against UV radiation, ensuring performance even under the intense sun of the UAE.

These pipes are also chemically resistant, able to withstand a wide range of substances with a pH range of 2 to 12, making them suitable for various industrial and agricultural applications. Available in coil lengths from 100 meters up to 1,500 meters (for sizes 16 mm to 32 mm) and 100-meter coils for sizes 40 mm to 160 mm, they offer flexibility for projects of all scales.

Key Features

• High-density polyethylene (PE 100) construction
• Pressure rating: 19.2 bar
• Outside diameter: 40 mm
• Standard dimension ratio: SDR 7.4
• Wall thickness: 5.5 mm
• Minimum required strength (MRS): 10 MPa
• Design safety factor: C=1.6
• Weight: 0.607 kg/m
• Color: Black with blue stripes
• Available in coil lengths (100m to 1500m depending on size)
• 50-year maintenance-free service life
• UV resistant, earthquake resistant, and chemical resistant (pH 2-12)
