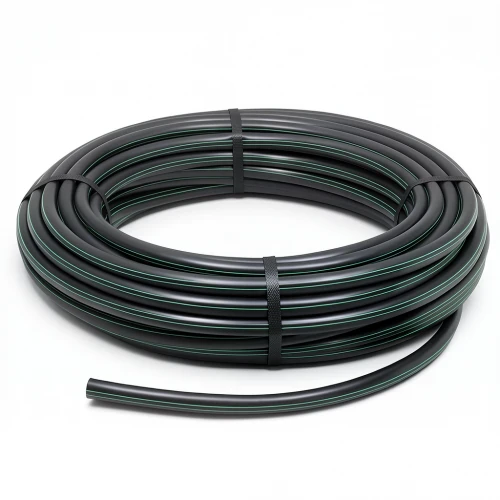

HDPE Plastic Coil Pipe PN 16 Bar [PE 80] Outside Diameter 75 mm SDR 9 Color Black | Almona Company
(37 Product Views)
HDPE coil pipe PN 16, PE 80, 75 mm OD, SDR 9, black, from Almona Company – ideal for UAE irrigation and water networks.
in stock
Product description
This HDPE coil pipe, manufactured by Almona Company, is a high-performance solution for irrigation and water distribution systems across the UAE. Made from high-density polyethylene (PE 80), it offers exceptional durability, chemical resistance, and a long service life of up to 50 years without maintenance.
Key Features
- Outside diameter: 75 mm
- Wall thickness: 8.4 mm
- Weight: 1.76 kg/m
- Standard dimension ratio: SDR 9
- Pressure rating: 16 bar
- Pipe series (S): 4
- Material grade: PE 80
- Color: Black
- Minimum Required Strength (MRS): 8 MPa
- Design stress: 6.4 MPa
- Design safety factor: C=1.25
- Length: coils from 100 m to 1500 m (sizes 16–32 mm); 100 m coils (sizes 40–160 mm)
- Manufactured according to DIN 8074/8075
Applications in the UAE
Ideal for agricultural irrigation projects in the UAE's arid climate, as well as for potable water networks, sewage lines, and industrial fluid transfer. The pipe's resistance to corrosion and chemicals (pH range 2–12) makes it suitable for harsh environmental conditions, ensuring reliable performance in Dubai, Abu Dhabi, and across the Emirates.
