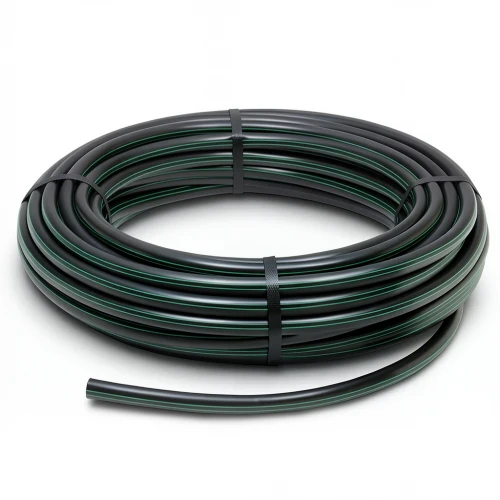

HDPE Plastic Coil Pipe PN 15.9 Bar [PE 63] Outside Diameter 40 mm SDR 7.4 Color Black with Green Stripes | Almona Factory

Al Mona Factory presents its HDPE (high-density polyethylene) coil pipes, engineered to meet the rigorous demands of water transportation networks across the United Arab Emirates. Manufactured in accordance with DIN 8074/8075, these pipes deliver outstanding performance and longevity, making them a preferred choice for contractors and municipalities in Dubai, Abu Dhabi, and Sharjah.

Key Features

• High pressure rating of 15.9 bar, ideal for pressurized water systems
• Outside diameter of 40 mm with a standard dimension ratio (SDR) of 7.4
• Material grade PE 63 with a minimum required strength (MRS) of 6.3 MPa
• Excellent resistance to UV radiation, chemicals (pH 2-12), and seismic activity
• Maintenance-free service life of up to 50 years
• Lightweight design (0.60 kg/m) for easy handling and quick installation
• Available in coil lengths of 100 meters, with options for larger sizes

Applications in the UAE

These HDPE pipes are perfectly suited for the UAE's challenging climate, whether installed underground or exposed to harsh conditions. They are widely used in municipal water supply, irrigation systems, and industrial fluid transport, ensuring reliable performance in both urban and remote areas. The flexibility of the pipe and its welded joints provide exceptional resistance to ground movement, a critical advantage in a region prone to seismic activity.

With a design safety factor of C=1.25 and a design stress (σs) of 5.04 MPa, these pipes offer robust structural integrity. The black color with green stripes ensures easy identification, while the smooth interior surface minimizes friction and energy losses. Choose Al Mona's HDPE coil pipes for a cost-effective, long-lasting solution that meets the highest quality standards.
