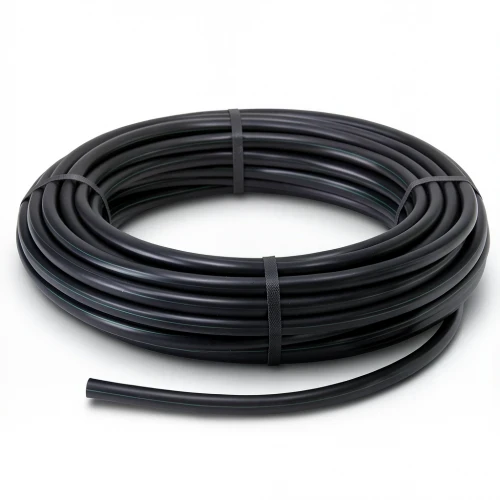

HDPE Plastic Coil Pipe PN 15.9 Bar [PE 63] Outside Diameter 32 mm SDR 7.4 Color Black | Almona Factory

This HDPE coil pipe, manufactured by Al Mona Factory, is engineered for high-performance liquid conveyance in demanding environments. Made from high-density polyethylene (PE 63), it combines exceptional strength with remarkable flexibility, making it a preferred choice for irrigation networks throughout the UAE.

Key Features

• Pressure rating: 15.9 bar (SDR 7.4)
• Outside diameter: 32 mm; wall thickness: 4.4 mm
• Weight: 0.386 kg/m for easy handling and installation
• Minimum Required Strength (MRS): 6.3 MPa; design stress: 5.04 MPa (safety factor C=1.25)
• Manufactured to DIN 8074/8075 standards
• Available in coil lengths from 100 m up to 1500 m (for sizes 16–32 mm); 100 m coils for sizes 40–160 mm

Applications in the UAE

Ideal for agricultural irrigation, landscaping projects, and water supply lines across Dubai, Abu Dhabi, and Sharjah. Its lightweight nature reduces transportation and installation costs, while its corrosion resistance ensures longevity in the region's harsh climate. With a maintenance-free lifespan of 50 years, this pipe offers reliable performance for both temporary and permanent installations.
