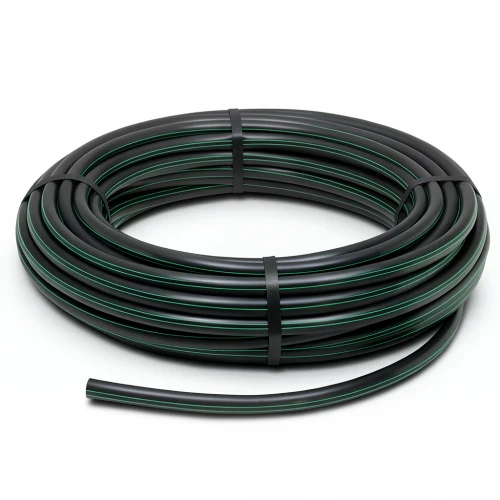

HDPE Plastic Coil Pipe PN 15.7 Bar [PE 63] OD 40 mm SDR 6 Color Black with Green Stripes | Almona Factory

Almona Factory presents this HDPE (high-density polyethylene) coil pipe, engineered for reliable water transportation networks across the United Arab Emirates. Manufactured to DIN 8074/8075 standards, this pipe combines durability with cost-efficiency, making it a preferred choice for contractors and municipalities in Dubai, Abu Dhabi, and Sharjah.

Key Features

• Material grade: PE 63, ensuring robust performance
• Pressure rating: 15.7 bar, suitable for high-pressure water systems
• Outside diameter: 40 mm, with a wall thickness of 6.7 mm
• Standard dimension ratio (SDR 6) with pipe series (S) of 2.5
• Minimum required strength (MRS) of 6.3 MPa and design safety factor of 1.6
• Resistant to UV exposure, chemical corrosion (pH 2-12), and seismic activity due to flexibility
• Maintenance-free service life of up to 50 years
• Available in coils of 100 meters for this size, with other lengths available for different sizes

Applications in the UAE

Ideal for potable water supply lines, irrigation systems, and industrial fluid transport, this pipe performs exceptionally in the UAE's harsh climate, resisting heat and UV radiation. Its flexibility simplifies installation in challenging terrains, reducing labor costs and project timelines.
