HDPE Plastic Coil Pipe PN 15.6 Bar [PE 100] OD 125 mm SDR 9 Color Black | Almona Factory

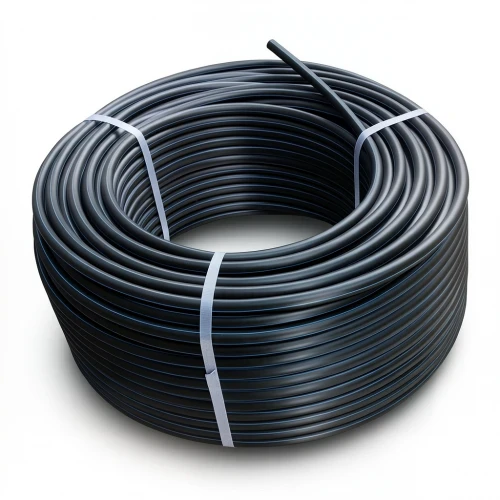

This HDPE coil pipe, manufactured by Almona Factory to DIN 8074/8075, is engineered for efficient water transportation in demanding municipal and industrial networks. Made from high-density polyethylene (PE 100), it delivers exceptional durability and long-term performance, making it a preferred choice for infrastructure projects across the UAE, from Dubai's urban developments to Abu Dhabi's industrial zones.

Key Features

• Pressure rating: 15.6 bar, ideal for high-pressure water supply systems
• Outer diameter: 125 mm with a wall thickness of 14 mm
• Standard dimension ratio (SDR 9) and pipe series (S) 4
• Material grade: PE 100 with Minimum Required Strength (MRS) of 10 MPa
• Design safety factor: C=1.6 (σs = 6.25 MPa)
• Weight: 4.92 kg/m
• Color: Black with UV resistance for prolonged outdoor exposure
• Length: Available in 100-meter coils for sizes 40 mm to 160 mm; custom coil lengths from 100 to 1500 meters for smaller diameters (16 mm to 32 mm)

Performance and Durability

The pipe withstands high water pressure, ensuring reliable operation in networks subjected to intense conditions common in the UAE's arid climate. With a 50-year maintenance-free service life, it reduces lifecycle costs and minimizes disruptions. Its flexibility and high welded-joint strength provide excellent resistance to seismic activity, a critical consideration for infrastructure resilience. Additionally, the pipe resists chemical corrosion across a pH range of 2 to 12, making it suitable for diverse water qualities and industrial applications.
