HDPE Plastic Coil Pipe PN 12.5 Bar [PE 80] Outside Diameter 75 mm SDR 11 Color Black | Almona Factory

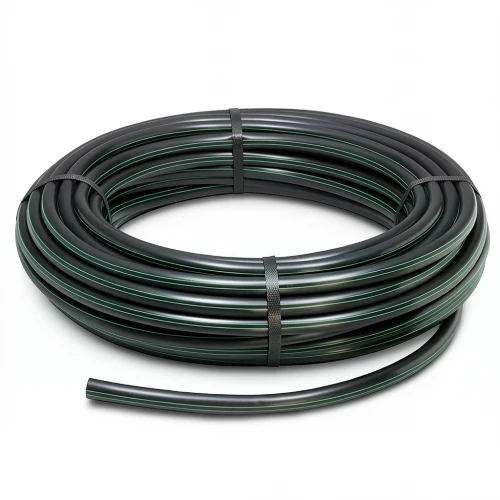

This HDPE coil pipe, manufactured by Almona Factory, is engineered for high-performance liquid conveyance in demanding environments. Made from high-density polyethylene (PE 80), it offers exceptional resistance to pressure, corrosion, and external impacts, ensuring a long service life of up to 50 years with minimal maintenance.

Key Features

• Pressure rating: 12.5 bar (PN 12.5)
• Standard Dimension Ratio: SDR 11
• Outside diameter: 75 mm
• Wall thickness: 6.8 mm
• Weight: 1.47 kg/m
• Material grade: PE 80
• Minimum Required Strength (MRS): 8 MPa
• Design stress (σs): 6.4 MPa
• Design safety factor: C=1.25
• Color: Black
• Manufactured to DIN 8074/8075 standards
• Available in coil lengths: 100m, 200m, 300m up to 1500m (for sizes 16mm-32mm), and 100m coils for sizes 40mm-160mm

Applications in the UAE

Ideal for agricultural irrigation projects in the UAE's arid climate, as well as for municipal water distribution networks, landscaping, and industrial fluid transport. Its flexibility and lightweight nature simplify installation in challenging terrains, reducing labor and equipment costs. The pipe's resistance to UV radiation and high temperatures makes it suitable for outdoor use in the Gulf region.

Choose Almona HDPE coil pipes for reliable, long-lasting performance in your next project across Dubai, Abu Dhabi, or any other emirate.
