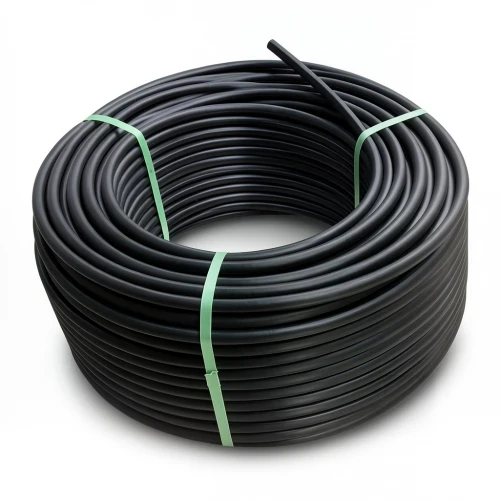

HDPE Plastic Coil Pipe PN 12.5 Bar [PE 80] OD 63 mm SDR 11 Color Black | Almona Factory

Almona Factory presents premium HDPE pipe coils, engineered to meet the rigorous demands of water transportation and irrigation systems in the United Arab Emirates. Manufactured in accordance with ISO 4427-2, these pipes offer exceptional strength, durability, and resistance to corrosion, making them a reliable choice for both underground and above-ground installations.

These coils are designed to withstand high pressures and temperatures, ensuring long-term performance in the region's challenging climate. The PE80 material grade provides a robust solution for potable water supply, agricultural irrigation, and industrial fluid transfer.

Key Features

• Outer diameter: 63 mm
• Standard dimension ratio (SDR): 11
• Material grade: PE 80
• Pressure rating: 12.5 bar
• Wall thickness: 5.8 mm
• Minimum required strength (MRS): 8 MPa
• Design stress (σs): 6.4 MPa
• Design safety factor: C=1.25
• Color: Black
• Available in coils of 100, 200, 300 meters up to 1500 meters (for sizes 16 mm to 32 mm)
• 100-meter coils available for sizes 40 mm to 160 mm

Ideal for use in Dubai, Abu Dhabi, Sharjah, and across the UAE, these HDPE coils deliver dependable performance for municipal water networks, landscaping projects, and agricultural developments.
