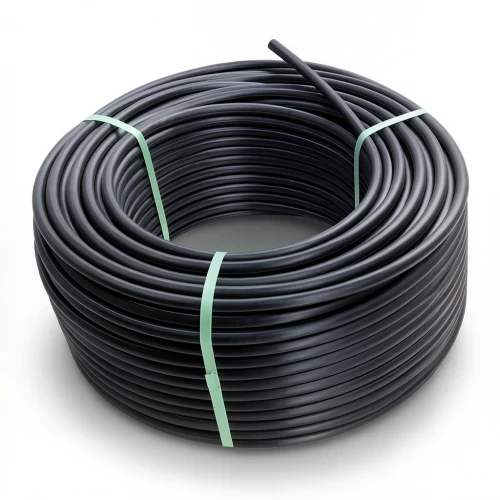

HDPE Plastic Coil Pipe PN 12.5 Bar [PE 80] OD 25 mm SDR 11 Color Black | Almona Factory
(31 Product Views)
High-density polyethylene (HDPE) pipe coils from Al-Mona Factory, rated PN 12.5 bar, with a 25 mm outer diameter, ideal for water supply and irrigation systems across the UAE.
in stock
Product description
Al-Mona Factory presents premium HDPE pipe coils, engineered for reliable performance in water supply and irrigation networks. Manufactured from high-density polyethylene (PE80) and compliant with ISO 4427-2, these pipes offer exceptional strength, durability, and resistance to high temperatures, pressure, and corrosion—making them a trusted choice for the demanding climate of the UAE.
Key Features
- Outer diameter: 25 mm
- Standard dimension ratio (SDR): 11
- Material grade: PE 80
- Pressure rating: 12.5 bar
- Wall thickness: 2.3 mm
- Minimum required strength (MRS): 8 MPa
- Design stress (σs): 6.4 MPa
- Design safety factor: C = 1.25
- Color: black
- Available in coil lengths: 100, 200, 300 meters up to 1500 meters (for sizes 16 mm to 32 mm); 100-meter coils for sizes 40 mm to 160 mm
Applications in the UAE
These HDPE coils are ideal for potable water distribution, agricultural irrigation, and landscaping projects across Dubai, Abu Dhabi, and the Northern Emirates. Their corrosion resistance and flexibility make them suitable for trenchless installation and long-lasting underground networks, even in the region's harsh environmental conditions.
