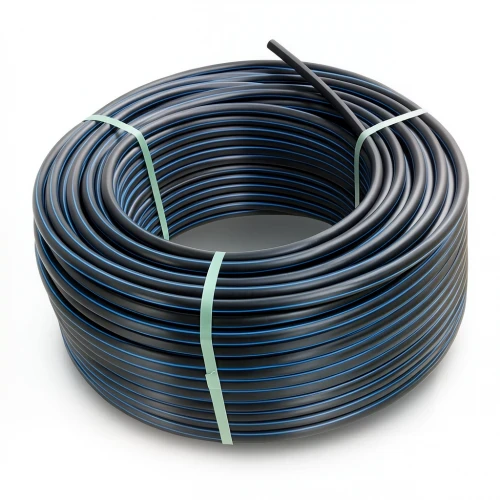

HDPE Plastic Coil Pipe PN 12.5 Bar [PE 100] OD 90 mm SDR 11 Color Black with Blue Stripes | Almona Factory

Al Mona Factory presents HDPE coil pipes, manufactured to DIN 8074/8075 standards, offering a robust solution for water transportation networks across the United Arab Emirates. These pipes, crafted from high-density polyethylene (PE 100), combine exceptional durability with superior performance, making them ideal for demanding applications in the region's harsh climate.

Key Features

• Pressure rating: 12.5 bar, suitable for high-pressure water systems
• Outside diameter: 90 mm with SDR 11 standard dimension ratio
• Material grade: PE 100 with minimum required strength (MRS) of 10 MPa
• Wall thickness: 8.2 mm, ensuring structural integrity
• Design safety factor: C=1.6 (σs = 6.25 MPa) for reliable long-term performance
• Weight: 2.14 kg/m for easy handling and installation
• Color: Black with blue stripes for clear identification
• Available in coils: 100, 200, 300 meters (up to 1500 m for sizes 16-32 mm); 100-meter coils for sizes 40-160 mm

Applications in the UAE

These HDPE pipes are perfectly suited for potable water supply, irrigation systems, and industrial fluid transfer in Dubai, Abu Dhabi, and Sharjah. Their resistance to UV radiation, chemical corrosion (pH 2-12), and seismic activity ensures reliable performance in the UAE's extreme temperatures and sandy environments. With a maintenance-free lifespan of 50 years, they offer a cost-effective and sustainable solution for infrastructure projects.
