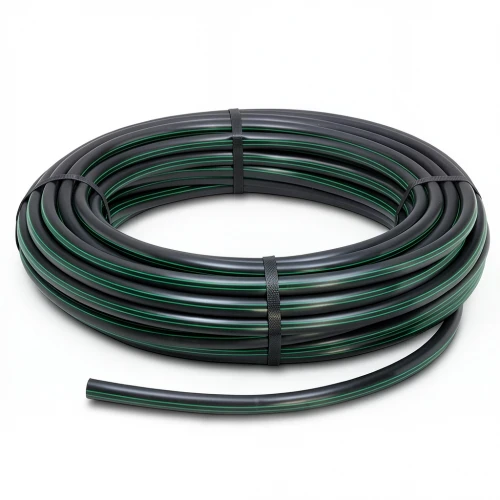

HDPE Plastic Coil Pipe PN 10 Bar [PE 80] Outside Diameter 32 mm SDR 13.6 Color Black with Green Stripes | Almona Factory

These HDPE coil pipes from Al Mona Factory are engineered for high-performance water distribution networks across the United Arab Emirates. Manufactured to DIN 8074/8075 standards, they offer exceptional durability and long-term reliability.

Key Features

• Material grade: PE 80 (high-density polyethylene)
• Pressure rating: 10 bar (PN 10)
• Outside diameter: 32 mm
• Standard dimension ratio: SDR 13.6
• Pipe series (S): 6.3
• Wall thickness: 2.4 mm
• Minimum required strength (MRS): 8 MPa
• Design safety factor: C=1.25
• Color: Black with green stripes
• Available in coils: 100 m, 200 m, 300 m up to 1500 m (for sizes 16 mm to 32 mm); 100 m coils for sizes 40 mm to 160 mm

Advantages for the UAE Market

These pipes are ideal for the UAE's harsh environment, withstanding high water pressures, UV exposure, and chemical corrosion (pH 2–12). Their flexibility provides excellent earthquake resistance, and they offer a maintenance-free service life of over 50 years. Easy to transport and install, they are a cost-effective solution for municipal, agricultural, and industrial water supply projects in Dubai, Abu Dhabi, and across the Emirates.
