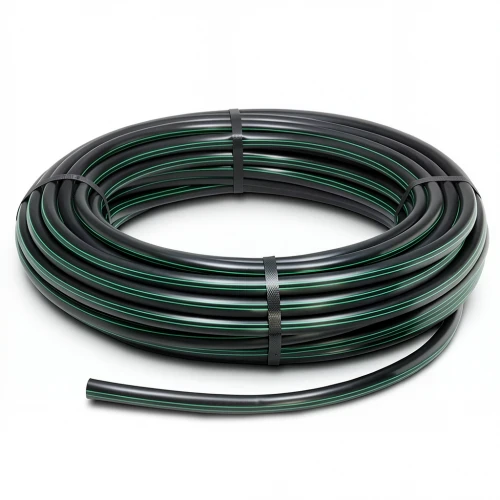

HDPE Plastic Coil Pipe PN 10 Bar [PE 80] OD 140 mm SDR 13.6 Color Black with Green Stripes | Almona Factory

Al Mona Factory presents premium HDPE (High-Density Polyethylene) coil pipes, engineered for efficient and durable water transportation networks. Manufactured in accordance with DIN 8074/8075 standards, these pipes are the ideal choice for projects across the United Arab Emirates, from Dubai's urban infrastructure to Abu Dhabi's industrial developments.

These HDPE pipes offer exceptional performance under high pressure, making them suitable for demanding water supply systems. With a design life of 50 years requiring minimal maintenance, they provide a long-term, cost-effective solution for contractors and municipalities. Their flexibility and resistance to earthquakes ensure reliability in the region's dynamic environment.

Key Features

• Material: High-Density Polyethylene (PE 80)
• Pressure Rating: 10 bar (PN 10)
• Outside Diameter: 140 mm
• Standard Dimension Ratio: SDR 13.6
• Pipe Series (S): 6.3
• Wall Thickness: 10.3 mm
• Minimum Required Strength (MRS): 8 MPa
• Weight: 4.22 kg/m
• Design Safety Factor: C = 1.25
• Color: Black with green stripes
• Length: Available in coils of 100 meters (for sizes 40 mm to 160 mm)

These pipes provide superior protection against UV exposure and chemical corrosion, withstanding a pH range of 2 to 12. Their high flexibility allows for easy installation and resistance to seismic activity, making them a trusted choice for water networks throughout the UAE.
